FOX TrimAway® System Components


Fox Venturi
Venturi
FX1, FX2 and FX3 Venturi
Venturi
FX1, FX2, FX3 Venturi

Model A B C D E F G Weight
lbs/kg
Part No.
FX1 9.63 2.00 7.00 1.50 NOM. 1.75
+/- .250
1.50 2.50 2.50/1.10 20222-14A
FX2 21.88 4.00 17.13 2.00,
2.50, 3.00
NOM. 2.00
+/- .375
2.50 4.50 17.00/7.70 20222-01A
FX3 26.50 5.00 20.25 2.00,
2.50, 3.00
NOM. 2.50
+/- .375
4.00 6.00 31.50/14.20 20222-13B
FX1 with
PTFE lining
9.625 2.00 7.00 1.50 NOM. 1.75
+/- .250
1.50 2.50 2.5/1.10 20222-101
FX2 with
PTFE lining
21.875 4.00 17.125 2.00,
2.50, 3.00
NOM. 2.00
+/- .375
2.50 4.50 17.00/7.70 20222-102
FX3 with
PTFE lining
26.50 5.00 20.250 2.00,
2.50, 3.00
NOM. 2.50
+/- .375
4.00 6.00 31.50/14.20 20222-103
Model FX1.5 Venturi
Model FX1.5 venturi

Model A B C D E F Weight
lbs/kg
Part No.
FX1.5 6.00 4.00 3.50 4.25 NOM. 2.00
+/- .250
2.50 5.50/2.5 41319-01A
FX1.5 with
PTFE lining
6.00 4.00 3.50 4.25 NOM. 2.00
+/- .250
2.50 5.50/2.5 41319-10

Click filename to view Specification Sheets
Filename  Description AutoCad Files
18503-12 VENTURI PRINCIPLE OF OPERATION
18503-95FOX TRIMAWAY® VENTURI
18503-96FOX TRIMAWAY® PICK-UP NOZZLE
18503-97FOX TRIMAWAY® Y CONNECTOR

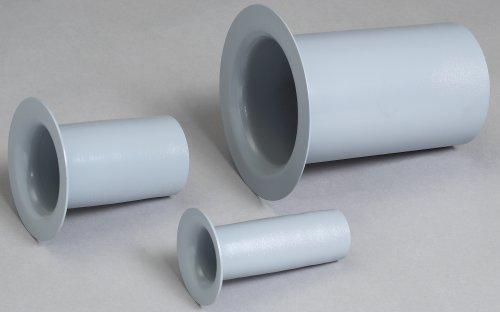

Pick Up Nozzle
Pick-Up Nozzles
FX1, FX2 and FX3 Pick Up Nozzles
Pick Up Nozzles
FX1, FX2 and FX3 Pick Up Nozzles


Pick Up Nozzle A B C Part No.
For FX1 Venturi 1.50 2.75 4.50 20222-19A
For FX2 Venturi 2.50 4.25 4.5 20222-18A
For FX3 Venturi 4.00 6.00 7.00 20222-21A
Pick Up Nozzle
with PTFE lining
A B C Part No.
For FX1 Venturi 1.50 2.75 4.50 20222-45
For FX2 Venturi 2.50 4.25 4.50 20222-46
For FX3 Venturi 4.00 6.00 7.00 20222-47
Wye Connector
Wye Connector
FX1, FX2 and FX3 Wye Connector

Wye Connector
Wye Connector


Wye Connector A B C Part No.
For FX1 Venturi 1.50 2.50 2.50 20222-22A
For FX2 Venturi 2.50 3.00 3.50 20222-23A
For FX3 Venturi 4.00 5.00 7.00 20222-20A
Wye Connector
with PTFE lining
A B C Part No.
For FX1 Venturi 1.50 2.50 2.50 20222-48
For FX2 Venturi 2.50 3.00 3.50 20222-49
For FX3 Venturi 4.00 5.00 7.00 20222-50

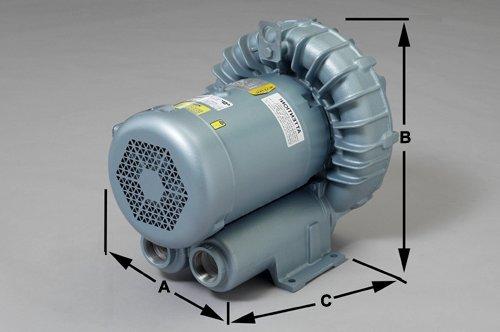

Regenerative Blower
Regenerative Blower
Regenerative Blower

TYPICAL SYSTEM SIZING
BLOWER MODEL
click on model# to view drawing 300G 400G 350G 450G 500G 501G 600G 700G 800G 1015G
Venturi Trim
Width
# of
Pickups
Conveying distance in feet
FX1 Up to 1" 1 25' 25' 40' 40' 50' 50' 50'
Up to 1" 2 15' 15' 35' 35' 50' 50' 50'
FX1.5 Up to 2" 1         15' 15' 25' 35' 50'
Up to 2" 2         15' 15' 25' 35' 50'
FX2 Up to 2" 1         25' 25' 50' over 100' over 100'
Up to 2" 2         20' 20' 45' over 100' over 100'
FX3 Up to 3" 1               40' 70' over 100'
Up to 3" 2               35' 60' over 100'
    Instructions:
  • Select your trim width
  • Select the number of pickup points
  • Select your conveying distance
  • Look at the column header to determine blower model
  • Look at furthest left column to determine venturi size
NOTE: This reference chart is for general approximation of system size. Many factors may require a change in system sizing, such as web speed, type of web, web thickness and web stiffness. Please contact CAC for an application specialist (800) 433-2413 to properly size a system to suit your specific requirements.


Approximate Dimensions (in inches)
Model A B C Weight
(lbs.)
300G 11.25 11.66 12.82 41
400G 11.25 11.66 12.82 41
350G 13.26 13.61 15.22 61
450G 13.26 13.61 13.95 43
500G 13.56 13.80 16.44 76
501G 13.56 13.80 15.23 65
600G 15.17 15.34 17.35 112
700G 16.87 18.21 19.92 215
800G 18.00 20.02 22.28 293
1015G 20.63 22.63 26.13 452


Electrical Data
Electrical Data Single Phase Three Phase
Model 300G 350G 500G 400G 450G 501G 600G 700G 800G 1015G
Voltage 115/
208-230
115/
208-230
115/
208-230
208-230/
460
208-230/
460
208-230/
460
208-230/
460
208-230/
460
208-230/
460
208-230/
460
Current/
Amp
9.8/
5.2-4.9
20.7/
11.2-10.4
23.6/
12.9-11.8
3.4-3.2/
1.6
5.1-4.9/
2.5
6.9-6.9/
3.45
13.0-12.0/
6.0
19.5-18.2/
9.1
35.0-29.5/
15.0
50.0-50.0/
25.0
Output Horsepower 1.0 1.5 2.5 1.0 1.5 2.5 5.0 5.5 10.0 15.0


Noise Levels
Model dBa at vacuum Part No.
300G 70-72 20222-51
400G 70-72 20222-52
350G 73-74 20222-53
450G 73-74 20222-54
500G 75-76 20222-55
501G 75-76 20222-56
600G 78-80 20222-57
700G 81-85 20222-58
800G 85-87 20222-59
1015G 85-90 20222-60
  • Data is highest sound level out of 4 places around the blower at 1 meter.
  • Data represents average of several units run at nominal voltage.
  • Lowest to highest maximum dba level throughout performance range is shown.
  • Readings at other than the maximum around the blower at 1 meter may be from 2 to 10 dba less than data shown.
  • Readings taken in a laboratory sound room that does not reflect much noise.

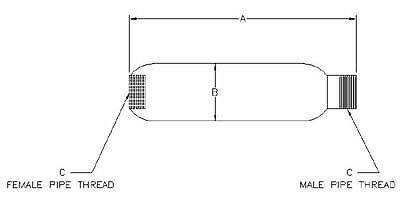

Silencers
Silencers
Silencers
(in inches)
Model A B C Part No.
300, 350,
400, 450,
500, 501
12.75 3.25 1 1/2 NPT 20222-73
600, 700 17.05 3.63 2 NPT 20222-74
800 17.44 4.25 2 1/2 NPT 20222-75
1015 20.25 4.75 3 NPT 20222-76
Filters and Filter Elements (in inches)
Filters and Filter Elements
Filters and Filter Elements



(in inches)
Model A B C Filter Part No. Element Part No.
300, 350,
400, 450,
500, 501
7.70 Ø 7.25 1 1/2 MPT 20222-61 20222-62
600, 700 10.63 Ø 4.81 2 FPT 20222-63 20222-64
800 10.00 Ø 13.12 2 1/2 MPT 20222-65 20222-66
1015 16.00 Ø 14.625 5 MPT 20222-67 20222-68
Flexible Duct Components

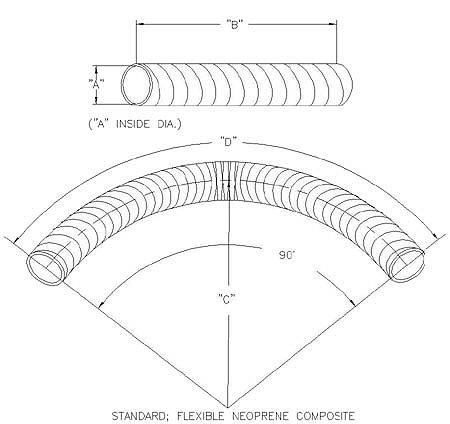

Flexible Neoprene Motive Duct
Available in 5' increments up to 50'
Flexible neoprene motive duct
(blower input)
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 1.50"Ø per 5' up to 25' 1.3' 2.0' 20222-109
FX2, FX3 2.00"Ø per 5' up to 25' 1.3' 2.0' 20222-110
FX2, FX3 2.50"Ø per 5' up to 25' 1.6' 2.5' 20222-111
FX3 3.00"Ø per 5' up to 25' 1.6' 2.5' 20222-112
FX3 4.00"Ø per 5' up to 25' 20222-113

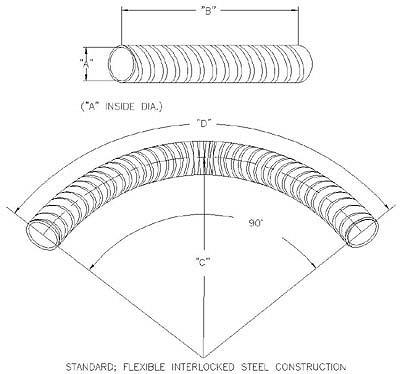

Flexible Steel Intake Duct
Available in 5' increments up to 50'

Flexible steel intake duct
(venturi vacuum)
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 1.50"Ø per 5' up to 50' 7" 2.0' 20222-114
FX2 2.50"Ø per 5' up to 50' 2.2' 3.5' 20222-118
FX2 3.00"Ø per 5' up to 50' 2.6' 4.0' 20222-120
FX3 4.00"Ø per 5' up to 50' 3.5' 5.5 ft 20222-122
FX1 1.50"Ø per 5' with PTFE
up to 10'
7" 2.0' 20222-115
FX2 2.50"Ø per 5' with PTFE
up to 10'
2.2' 3.5' 20222-119
FX2 3.00"Ø per 5' with PTFE
up to 10'
2.6' 4.0' 20222-121
FX3 4.00"Ø per 5' with PTFE
up to 10'
3.5' 5.5' 20222-123
Flexible Steel Discharge Duct
Available in 5' increments up to 50'

Flexible steel discharge duct
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 2.00"Ø per 5' up to 50' 2.0' 3.0' 20222-116
FX1 3.00"Ø per 5' up to 50' 2.6' 4.0' 20222-120
FX2, MR2 4.00"Ø per 5' up to 50' 3.5' 5.5' 20222-122
FX3, MR3 5.00"Ø per 5' up to 50' 4.0' 6.5 ft 20222-124
FX1 2.00"Ø per 5' with PTFE
up to 10'
2.0' 3.0' 20222-117
FX1 3.00"Ø per 5' with PTFE
up to 10'
2.6' 4.0' 20222-121
FX2, MR2 4.00"Ø per 5' with PTFE
up to 10'
3.5' 5.5' 20222-123
FX3, MR3 5.00"Ø per 5' with PTFE
up to 10'
4.0' 6.5' 20222-125
Rigid Duct Components
Straight Rigid Motive Duct
Straight Rigid Motive Duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


Straight Rigid Motive Duct
(blower input)
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50"Ø 20' 16 20222-126
FX3 3.00"Ø 20' 16 20222-128
FX3 4.00"Ø 20' 16 20222-130

Straight Rigid Intake Duct
(venturi vacuum)
Venturi Model Diameter A Length B Gauge Part No.
FX2 2.50"Ø 20' 16 20222-126
FX2 3.00"Ø 20' 16 20222-128
FX3 4.00"Ø 20' 16 20222-130
FX2 2.5"Ø 10' with PTFE lining 16 20222-127
FX2 3.0"Ø 10' with PTFE lining 16 20222-129
FX3 4.0"Ø 10' with PTFE lining 16 20222-131

Straight Rigid Discharge Duct
(venturi pressure)
Venturi Model Diameter A Length B Gauge Part No.
3.00"Ø 20' 16 20222-128
FX2, MR2 4.00"Ø 20' 16 20222-130
FX3, MR3 5.00"Ø 20' 14 20222-132
3.0"Ø 10' with PTFE lining 16 20222-129
FX2, MR2 4.0"Ø 10' with PTFE lining 16 20222-131
FX3, MR3 5.0"Ø 10' with PTFE lining 14 20222-133

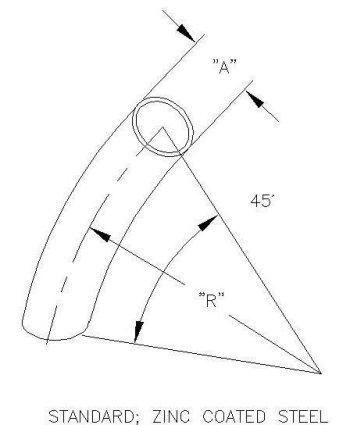

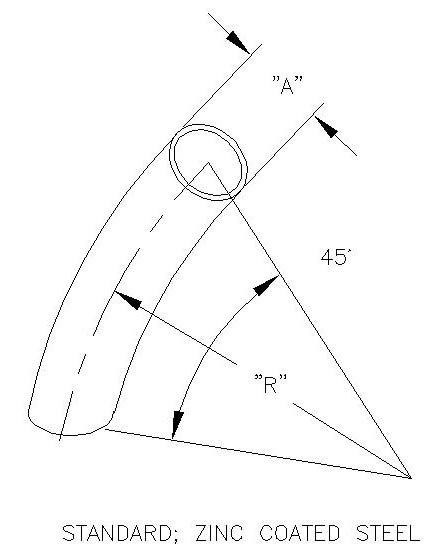

45° Long radius bend duct
45° Long radius bend duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


45° Long radius bend rigid motive duct
(blower output)
in inches
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50Ø 36 radius 16 20222-134
FX3 3.00Ø 48 radius 16 20222-136
FX3 4.00Ø 48 radius 16 20222-138

45° Long radius bend rigid intake duct
(venturi vacuum)
Venturi Model Diameter A 45° Angle R Gauge Part No.
FX2 2.50Ø 36 radius 16 20222-134
FX2 3.00Ø 48 radius 16 20222-136
FX3 4.00Ø 48 radius 16 20222-138
FX2 2.50Ø 36 radius with PTFE lining 16 20222-135
FX2 3.00Ø 48" radius with PTFE lining 16 20222-137
FX3 4.00Ø 48" radius with PTFE lining 16 20222-139

45° Long radius bend rigid discharge duct
(venturi pressure)
in inches
Venturi Model Diameter A 45° Angle R Gauge Part No.
3.00Ø 48 radius 16 20222-136
FX2, MR2 4.00Ø 48 radius 16 20222-138
FX3, MR3 5.00Ø 48 radius 14 20222-140
3.00Ø 48 radius with PTFE lining 16 20222-137
FX2, MR2 4.00Ø 48 radius with PTFE lining 16 20222-139
FX3, MR3 5.00Ø 48 radius with PTFE lining 14 20222-141
90° Long radius bend duct
90° Long radius bend duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


90° Long radius bend rigid motive duct
(blower output)
in inches
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50Ø 36 radius 16 20222-142
FX3 3.00Ø 48 radius 16 20222-144
FX3 4.00Ø 48 radius 16 20222-146

90° Long radius bend rigid intake duct
(venturi vacuum)
in inches
Venturi Model Diameter A 90° Angle R Gauge Part No.
FX2 2.50Ø 36 radius 16 20222-142
FX2 3.00Ø 48 radius 16 20222-144
FX3 4.00Ø 48 radius 16 20222-146
FX2 2.50Ø 36 radius with PTFE lining 16 20222-143
FX2 3.00Ø 48 radius with PTFE lining 16 20222-145
FX3 4.00Ø 48 radius with PTFE lining 16 20222-147

90° Long radius bend rigid discharge duct
(venturi pressure)
Venturi Model Diameter A 90° Angle R Gauge Part No.
3.00Ø 48 radius 16 20222-144
FX2, MR2 4.00Ø 48 radius 16 20222-146
FX3, MR3 5.00Ø 48 radius 14 20222-148
3.00Ø 48 radius with PTFE lining 16 20222-145
FX2, MR2 4.00Ø 48 radius with PTFE lining 16 20222-147
FX3, MR3 5.00Ø 48 radius with PTFE lining 14 20222-149


Additional Components
Duct couplings for flexible duct


Duct couplings for flexible duct
(includes coupling & 2 duct clamps)
in inches
Diameter A Length B Part No.
1.50Ø 6.00 20222-150
2.00Ø 6.00 20222-152
2.50Ø 6.00 20222-154
3.00Ø 6.00 20222-156
4.00Ø 6.00 20222-158
5.00Ø 6.00 20222-160
1.50Ø 6.00 with PTFE 20222-151
2.00Ø 6.00 with PTFE 20222-153
2.50Ø 6.00 with PTFE 20222-155
3.00Ø 6.00 with PTFE 20222-157
4.00Ø 6.00 with PTFE 20222-159
5.00Ø 6.00 with PTFE 20222-161


Compression couplings for rigid duct


Compression couplings for rigid duct
(galvanized, rubber gasket, galvanized bolts)
in inches
Diameter A Length B Part No.
2.50Ø 4.00 20222-162
3.00Ø 6.00 20222-163
4.00Ø 6.00 20222-164
5.00Ø 6.00 20222-165


Tubing hangers


Tubing hangers
(16 ga. zinc coated steel only)
in inches
Diameter A B C D Part No.
2.50Ø 1.00 2.38 0.50 20222-166
3.00Ø 1.00 2.63 0.50 20222-167
4.00Ø 1.00 3.00 0.50 20222-168
5.00Ø 1.00 3.50 0.50 20222-169
