FOX TrimAway® System Components

Blowers
Venturi
Pick Up Nozzle
Wye Connector
Silencers
Filters
Duct
Venturi Mounting Bracket


FOX TrimAway Venturi

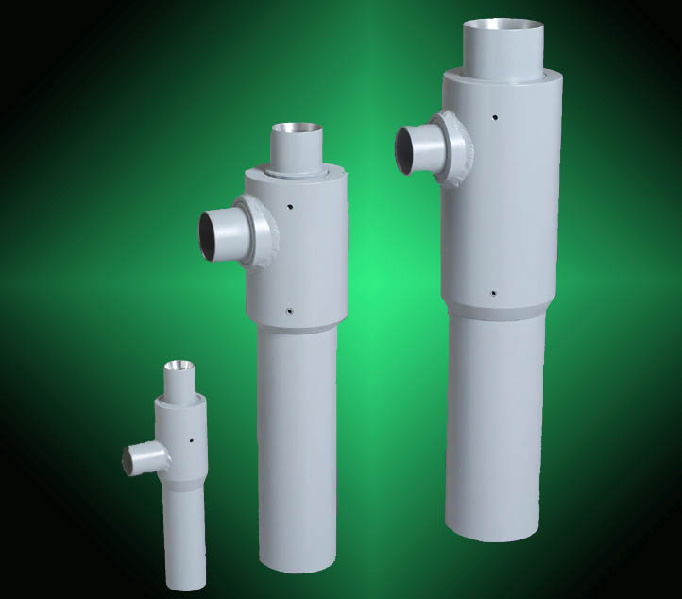

Which Venturi is right for me?

    FOX TrimAway venturi's are designed for efficient removal of flexible to semi-rigid materials, such as web edge trim, pieces and matrix. All venturi models can be PTFE lined where exposed pressure sensitive adhesives must be handled. FOX TrimAway venturi's are designed to operate in conjunction with regnerative type blowers. Air flow thru each venturi can vary greatly depending on the blower size with which it is teamed. CAC engineers assist each customer with the proper venturi / blower combination for your application. Venturi's are normally tuned for maximum suction and air flow prior to shipment to the customer; however, all venturi models are adjustable in the field.

    Click here for the Venturi Principle of Operation!



FX1 Venturi

FX1 Venturi

    This venturi is generally used for narrow trim (up to 1") and relatively short conveying distances (up to 50'). FX1 venturi's are typically used for flexible trim at relative slow to intermediate speeds. The FX1 is approximately 11.5" long, 1.5" diameter at the suction and 2" diameter at the discharge (pressure). Typical regenerative blower sizing is between .5 HP to 2HP. Our FX1 Venturi's are In Stock - Order Today!

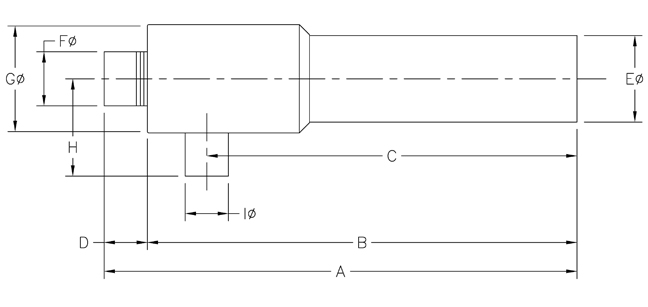

    Click here for specifications on our FX1 Venturi!


FX1 Venturi

FX2 Venturi

    This venturi is our mid-size venturi and is our most popular model. It can handle trim up to 2" wide (sometimes wider depending on the trims flexibility). Conveying distances can range from 10' to approximately 100'. FX2 venturi's can handle trim that is flexible to semi-rigid. Trim speed can vary from just a few feet per minute up to over 4,000 feet per minute. The FX2 is approximately 24" long, 2.5" diameter at the suction and 4" diameter at the discharge (pressure). Typical regenerative blower sizing is between 2 HP and 10 HP. Our FX2 Venturi's are In Stock - Order Today!

    Click here for specifications on our FX2 Venturi!


FX1 Venturi

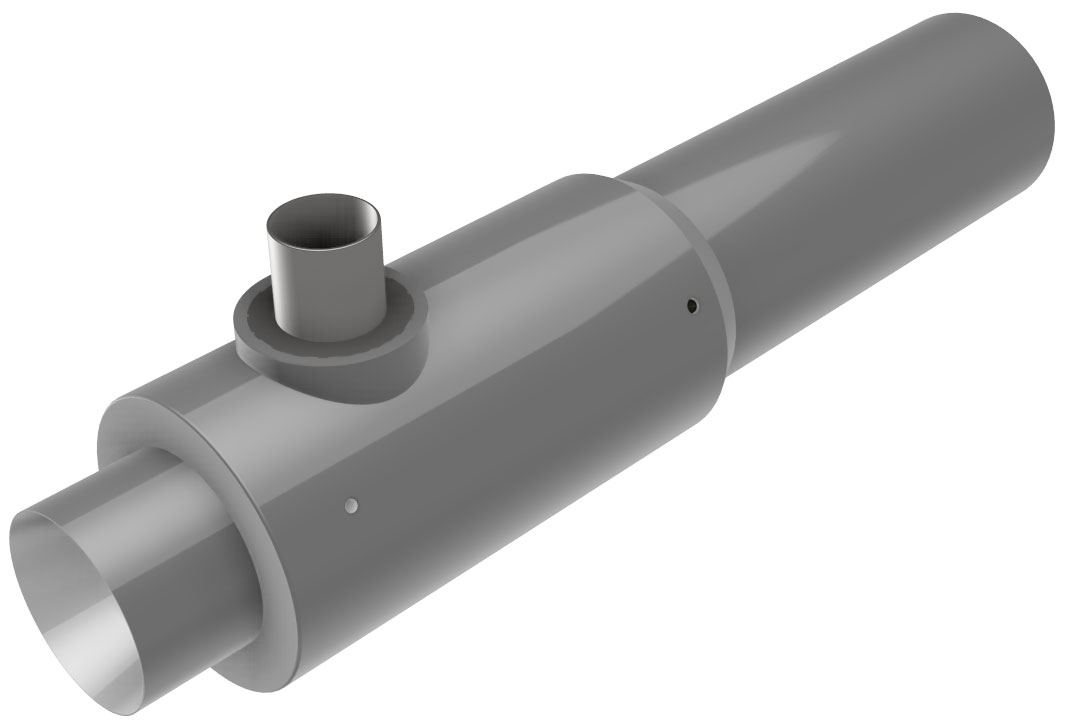

FX3 Venturi

    This is our largest model of venturi. It can handle trim over 3" wide. Conveying distances can range from 10 feet to well over 100 feet. FX3 venturi's can handle trim that is flexible to semi-rigid. Trim speed can vary from just a few feet per minute to over 6,000 feet per minute. The FX3 is approximately 29" long, 4" diameter at the suction and 5" diameter at the discharge. The inside diameter tapers down to 3". Typical regenerative blower sizing is between 5 HP up to 20 HP. Our FX3 Venturi's are In Stock - Order Today!

    Click here for specifications on our FX3 Venturi!

Click filename to view Specification Sheets
Filename  Description
18503-12 Venturi Principle of Operation
18503-295FX1 Venturi
18503-296FX2 Venturi
18503-297FX3 Venturi
18503-97FOX TrimAway® Y Connector



RETURN TO TOP

Venturi Mounting Bracket

Venturi Mounting Bracket

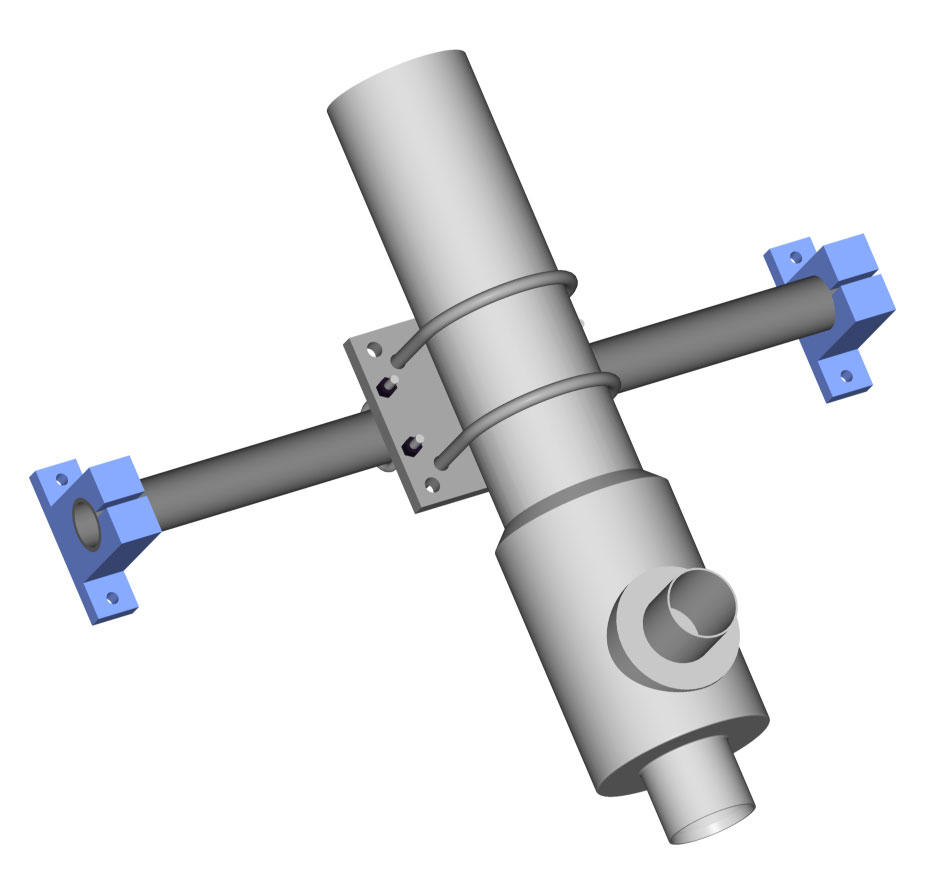

    The optional venturi mounting bracket will allow for easy mounting of any of the FOX TrimAway venturis. These brackets are available in three unique sizes, each designed to fit the FX1, FX2 and FX3 venturis.

Click filename to view Specification Sheets
Filename  Description
18503-241 FX1 Venturi Mounting Kit
18503-242FX2 Venturi Mounting Kit
18503-243FX3 Venturi Mounting Kit


RETURN TO TOP

Pick Up Nozzles

Pick Up Nozzles

    FOX TrimAway pick up nozzles are trumpet shaped to eliminate the possibility of trim snags. Standard construction is epoxy painted (gray) steel for long life. Pick up nozzles come in three sizes to fit perfectly with our unique venturi systems but they also work well with almost any pneumatic trim removal system. Our Pick Up Nozzles are In Stock - Order Today!

    Click here for specifications on our Pick Up Nozzles!

Pick Up Nozzle A B C
1.50" 1.50 2.75 4.50
2.50" 2.50 4.25 4.50
4.00" 4.00 6.00 7.00



RETURN TO TOP

Y

Y Connector

    Y Connectors from FOX TrimAway are typically used for connecting two pick up points to feed them into one venturi. Standard construction is epoxy painted (gray) steel for long life. Y connectors come in four sizes that are engineered for use with FOX TrimAway pneumatic trim removal systems. However, they work equally well with almost any trim removal system. Our Y Connectors are In Stock - Order Today!

    Click here for specifications on our Y Connectors!

Y Connectors A B C
1.50" 1.50 2.50 2.50
2.00" 2.00 3.25 2.75
2.50" 2.50 3.00 3.50
4.00" 4.00 5.00 7.00


RETURN TO TOP
Notice: A session had already been started - ignoring session_start() in C:\CustomerData\webspaces\webspace_00259541\wwwroot\products\template\session_track.php on line 3 FOX TrimAway, Matrix Removal, FOX Runner, FOX Combo systems, TrimAX Chopper custom designed and manufactured by Converter Accessory (CAC)


Regenerative Blowers

Regenerative Blowers


For a complete list of available blowers, click here!

Particularly well suited for use with CAC's FOX TrimAway pneumatic trim removal systems, regenerative blowers deliver powerful, energy efficient and quiet performance.
  • Blowers are available for 50 and 60 Hz operation
  • Noise levels are well below competitors
  • Light weight, compact design - easy installation
  • Virtually maintenance free operation - double shielded, sealed stainless steel bearings
  • Efficient electricity consumption to save you money
  • Full complement of accessories including filters, silencers, starters and VFD's available


Regenerative Blower

Typical System Sizing

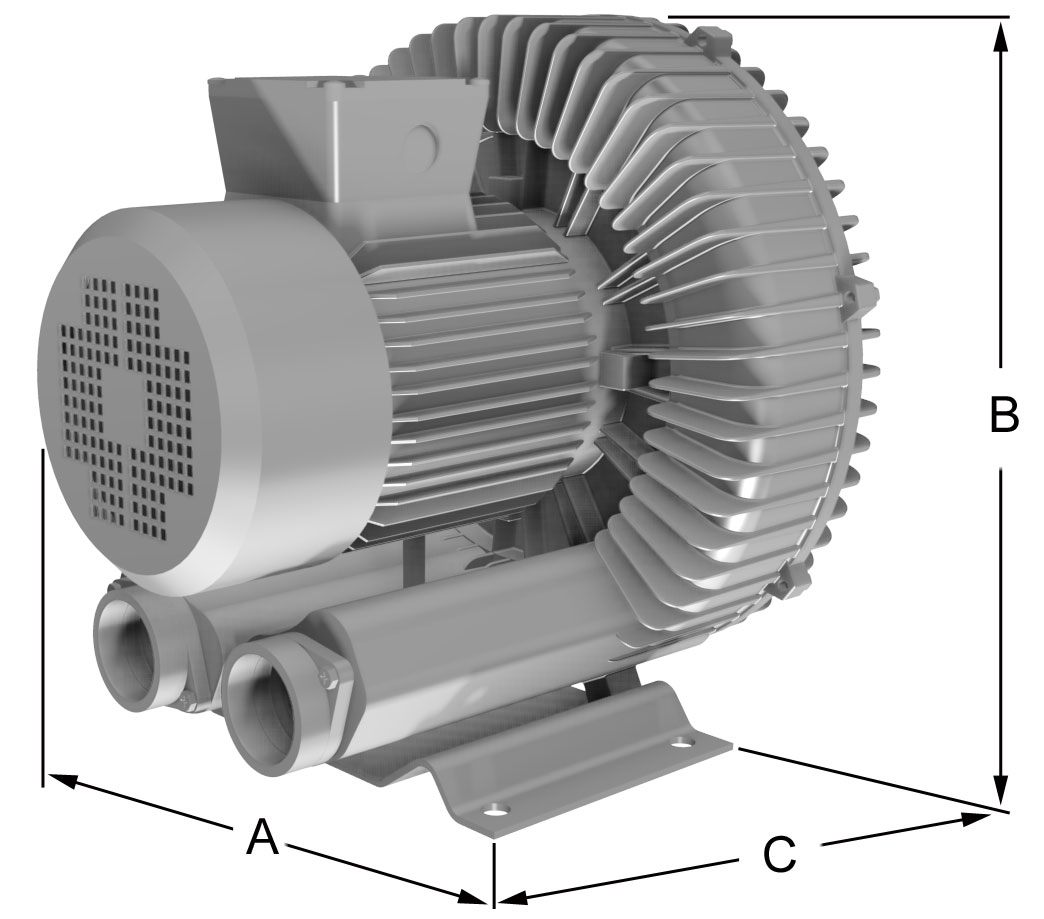

Approximate Dimensions (in inches)

Noise Levels
(approx dba at
vacuum)

Use with
Venturi

Approx
Conveying
Distance

Model HP A B C Weight
(lbs.)
300AB .50 9.05 9.64 9.78 25 61 FX1 10 - 15'
400AB .67 9.05 9.64 9.78 24 61 FX1 10 - 15'
350AB 1.0 11.22 11.89 10.23 35 64 FX1 30'
450AB 1.25 11.22 11.89 10.23 31 64 FX1 30'
500AB 2.00 13.11 13.30 12.40 57 70 FX2 50'
501AB 2.00 13.11 13.30 12.40 49 70 FX2 50'
600AB 3.50 11.65 13.30 12.51 51 70 FX1,FX2 50 -75'
700AB 5.00 15.00 15.03 14.44 75 72 FX2,FX3 100' +
800AB 10.00 18.11 19.48 17.12 185 80 FX2,FX3 100' +
1015AB 20.00 21.92 22.67 39.28 247 81 FX3 150' +

  • Data is highest sound level out of 4 places around the blower at 1 meter
  • Data represents average of several units run at nominal voltage
  • Lowest to highest maximum dba level throughout performance range is shown
  • Readings at other than the maximum around the blower at 1 meter may be from 2 to 10 dba less than data shown
  • Readings taken in a laboratory sound room that does not reflect much noise

Electrical Data
Electrical Data Single Phase Three Phase
Model 300AB 350AB 500AB 400AB 450AB 501AB 600AB 700AB 800AB 1015AB
Voltage 110-120/
220-240
110-120/
220-240
110-120/
220-240
220-275/
380-480
220-275/
380-480
220-275/
380-480
220-275/
380-480
220-275/
380-480
220-275/
380-480
220-275/
380-480
Current/
Amp
7.8Δ/
3.9Y
13Δ/
6.5Y
23.0Δ/
11.5Y
2.3Δ/
1.3Y
3.9Δ/
2.3Y
6.0Δ/
3.5Y
7.0Δ/
4.0Y
13.5Δ/
7.8Y
26.0Δ/
13.0Y
51.5Δ/
29.8Y
Output Horsepower .50 1.00 2.00 .67 1.25 2.00 3.50 5.00 10.00 20.00

Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 472 Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 472 Warning: include(): Failed opening '../template/section_break.txt' for inclusion (include_path='.;C:\PHP5\PEAR\pear') in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 472

Silencers

Silencers


Add one (suction side) or a second silencer (pressure side) to your blower to reduce noise generated by the blower. Adding up to two silencers can decrease decibel level by up to 10DB. The level of noise reduction will vary depending on which blower and silencer(s) are combined.

(in inches)
Model A B C Part No.
300AB, 400AB 14.50 2.50 Ø 1 1/4 MPT 20222-227
350AB, 450AB 14.00 3.18 Ø 1 1/2 MPT 20222-228
500AB, 501AB, 600AB, 700AB 18.50 3.58 Ø 2 MPT 20222-229
500AB, 501AB, 600AB, 700AB 15.74 3.62 Ø 2 NPT 20222-229A
800AB 23.75 4.58 Ø 2 1/2 MPT 20222-230
1015AB 29.78 10 Ø 4 MPT 20222-231

Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 545 Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 545 Warning: include(): Failed opening '../template/section_break.txt' for inclusion (include_path='.;C:\PHP5\PEAR\pear') in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 545
Filter

Filters


Filter canister with filter element is always recommended for suction of the blower. The filter assembly will keep clean, dry air entering the blower. It will remove particulate matter and contaminates which have the potential to damage the blower.



(in inches)
Model A B C Filter Part No. Element Part No.
300AB, 400AB 6.000 Ø 6.625 1 1/4 MPT 20222-232 20222-233
350AB, 450AB 6.000 Ø 6.625 1 1/2 MPT 20222-234 20222-235
500AB, 501AB, 600AB, 700AB 7.750 Ø 7.250 2 MPT 20222-236 20222-237
800AB 7.750 Ø 7.500 2 1/2 MPT 20222-238 20222-239
1015AB 10.000 Ø 14.000 4 MPT 20222-240 20222-241
Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 621 Warning: include(../template/section_break.txt): failed to open stream: No such file or directory in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 621 Warning: include(): Failed opening '../template/section_break.txt' for inclusion (include_path='.;C:\PHP5\PEAR\pear') in C:\CustomerData\webspaces\webspace_00259541\wwwroot\blower\blower_include_kcm.php on line 621


RETURN TO TOP

Flexible Duct Components

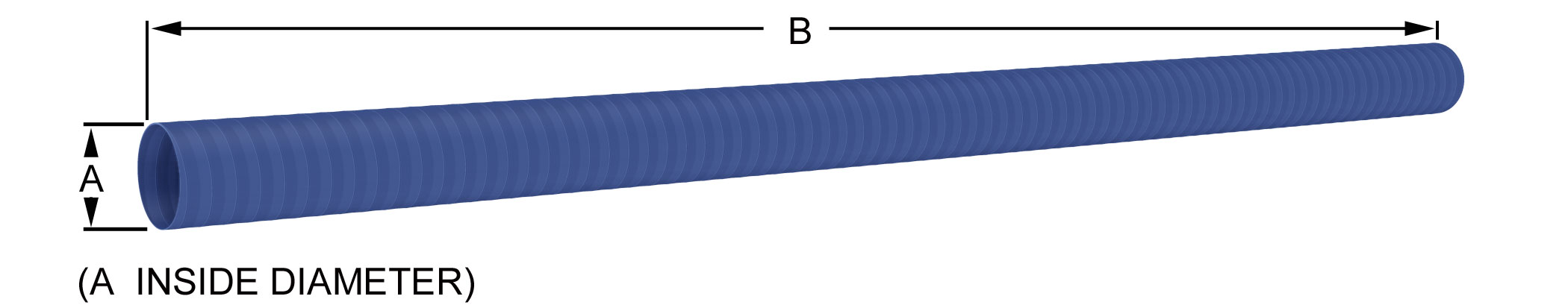

Flexible Neoprene Motive Duct
Flexible Neoprene Motive Duct
Available in 5' increments up to 25'

Flexible neoprene motive duct
(blower input)
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 1.50"Ø per 5' up to 25' 1.3' 2.0' 20222-109
FX2, FX3 2.00"Ø per 5' up to 25' 1.3' 2.0' 20222-110
FX2, FX3 2.50"Ø per 5' up to 25' 1.6' 2.5' 20222-111
FX3 3.00"Ø per 5' up to 25' 1.6' 2.5' 20222-112
FX3 4.00"Ø per 5' up to 25' 20222-113


Flexible Steel Duct
Flexible Neoprene Motive Duct
Available in 5' increments up to 50'


Flexible steel intake duct
(venturi vacuum)
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 1.50"Ø per 5' up to 50' 7" 2.0' 20222-114
FX2 2.50"Ø per 5' up to 50' 2.2' 3.5' 20222-118
FX3 4.00"Ø per 5' up to 50' 3.5' 5.5 ft 20222-122
FX1 1.50"Ø per 5' with PTFE
up to 10'
7" 2.0' 20222-115
FX2 2.50"Ø per 5' with PTFE
up to 10'
2.2' 3.5' 20222-119
FX3 4.00"Ø per 5' with PTFE
up to 10'
3.5' 5.5' 20222-123
Flexible Steel Duct
Flexible Neoprene Motive Duct
Available in 5' increments up to 50'

Flexible steel discharge duct
Venturi Model Diameter A Length B Min Bending
Radius C
Duct Length for
90° Bend D
Part No.
FX1 2.00"Ø per 5' up to 50' 2.0' 3.0' 20222-116
FX2, MR2 4.00"Ø per 5' up to 50' 3.5' 5.5' 20222-122
FX3, MR3 5.00"Ø per 5' up to 50' 4.0' 6.5 ft 20222-124
FX1 2.00"Ø per 5' with PTFE
up to 10'
2.0' 3.0' 20222-117
FX2, MR2 4.00"Ø per 5' with PTFE
up to 10'
3.5' 5.5' 20222-123
FX3, MR3 5.00"Ø per 5' with PTFE
up to 10'
4.0' 6.5' 20222-125


RETURN TO TOP

Rigid Duct Components



Straight Rigid Motive Duct
Straight Rigid Motive Duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


Straight Rigid Motive Duct
(blower input)
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50"Ø 20' 16 20222-126
FX3 4.00"Ø 20' 16 20222-130

Straight Rigid Intake Duct
(venturi vacuum)
Venturi Model Diameter A Length B Gauge Part No.
FX2 2.50"Ø 20' 16 20222-126
FX3 4.00"Ø 20' 16 20222-130
FX2 2.50"Ø 10' with PTFE lining 16 20222-127
FX3 4.00"Ø 10' with PTFE lining 16 20222-131

Straight Rigid Discharge Duct
(venturi pressure)
Venturi Model Diameter A Length B Gauge Part No.
FX2, MR2 4.00"Ø 20' 16 20222-130
FX3, MR3 5.00"Ø 20' 14 20222-132
FX2, MR2 4.00"Ø 10' with PTFE lining 16 20222-131
FX3, MR3 5.00"Ø 10' with PTFE lining 14 20222-133

45° Long radius bend duct
45° Long radius bend duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


45° Long radius bend rigid motive duct
(blower output)
in inches
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50" Ø 36" radius 16 20222-134
FX3 4.00" Ø 48" radius 16 20222-138

45° Long radius bend rigid intake duct
(venturi vacuum)
Venturi Model Diameter A 45° Angle R Gauge Part No.
FX2 2.50" Ø 36" radius 16 20222-134
FX3 4.00" Ø 48" radius 16 20222-138
FX2 2.50" Ø 36"radius with PTFE lining 16 20222-135
FX3 4.00" Ø 48" radius with PTFE lining 16 20222-139

45° Long radius bend rigid discharge duct
(venturi pressure)
in inches
Venturi Model Diameter A 45° Angle R Gauge Part No.
FX2, MR2 4.00" Ø 48" radius 16 20222-138
FX3, MR3 5.00" Ø 48" radius 14 20222-140
FX2, MR2 4.00" Ø 48" radius with PTFE lining 16 20222-139
FX3, MR3 5.00" Ø 48" radius with PTFE lining 14 20222-141

90° Long radius bend duct
90° Long radius bend duct
Available in carbon steel, zinc, galvanized coated steel,
aluminum and stainless steel


90° Long radius bend rigid motive duct
(blower output)
in inches
Venturi Model Diameter A Length B Gauge Part No.
FX2, FX3 2.50" Ø 36" radius 16 20222-142
FX3 4.00" Ø 48" radius 16 20222-146

90° Long radius bend rigid intake duct
(venturi vacuum)
in inches
Venturi Model Diameter A 90° Angle R Gauge Part No.
FX2 2.50" Ø 36" radius 16 20222-142
FX3 4.00" Ø 48" radius 16 20222-146
FX2 2.50" Ø 36" radius with PTFE lining 16 20222-143
FX3 4.00" Ø 48" radius with PTFE lining 16 20222-147

90° Long radius bend rigid discharge duct
(venturi pressure)
Venturi Model Diameter A 90° Angle R Gauge Part No.
FX2, MR2 4.00" Ø 48" radius 16 20222-146
FX3, MR3 5.00" Ø 48" radius 14 20222-148
FX2, MR2 4.00" Ø 48" radius with PTFE lining 16 20222-147
FX3, MR3 5.00" Ø 48" radius with PTFE lining 14 20222-149


RETURN TO TOP


Additional Components


Duct couplings for flexible duct
(includes coupling & 2 duct clamps) in inches

Duct couplings for flexible duct



Diameter A Length B Part No.
1.50" Ø 6.00" 20222-150
2.00" Ø 6.00" 20222-152
2.50" Ø 6.00" 20222-154
4.00" Ø 6.00" 20222-158
5.00" Ø 6.00" 20222-160
1.50" Ø 6.00" with PTFE 20222-151
2.00" Ø 6.00" with PTFE 20222-153
2.50" Ø 6.00" with PTFE 20222-155
4.00" Ø 6.00" with PTFE 20222-159
5.00" Ø 6.00" with PTFE 20222-161


Compression couplings for rigid duct


Compression couplings for rigid duct
(galvanized, rubber gasket, galvanized bolts)
in inches
Diameter A Length B Part No.
2.50" Ø 4.00" 20222-162
4.00" Ø 6.00" 20222-164
5.00" Ø 6.00" 20222-165


Tubing hangers

Tubing hangers
(16 ga. zinc coated steel only)
in inches
Diameter A B C D Part No.
2.50" Ø 1.00" 2.38" 0.50" 20222-166
4.00" Ø 1.00" 3.00" 0.50" 20222-168
5.00" Ø 1.00" 3.50" 0.50" 20222-169

Check out our other Pneumatic Conveying Systems solutions
Fox TrimAway® Systems Matrix Removal Systems


Fox Runner™ Fox Combo™


Trim-Ax™ Chopper Custom Motor Starters


System Components Waste Collection Methods


Variable Frequency Drive Fox TrimAway® Support Center


What's new with Trim Removal Air Flow Data




See our Fox TrimAway® System videos - click here!

To request additional information - click here!

Click here to receive informative e-mails from CAC

Application story featuring our COR-LOK® and Fox TrimAway® System


Click Here to go to the home page
Converter Accessory Corporation
201 Alpha Road
P.O. Box 188
Wind Gap PA 18091-0188

Phone (800) 433-2413 or (610) 863-6008
Fax (800) 709-1007 or (610) 863-7818

sales@converteraccessory.com

www.converteraccessory.com



What is Web Handling?
Web Handling is the science, engineering and equipment necessary to successfully transport a continuous flexible material through various processes without defect. Enhancing Web Handling with proper equipment will ensure materials are processed at their maximum efficiency, allowing the process to generate maximum profits.

**Click here for CAC's terms and conditions**
