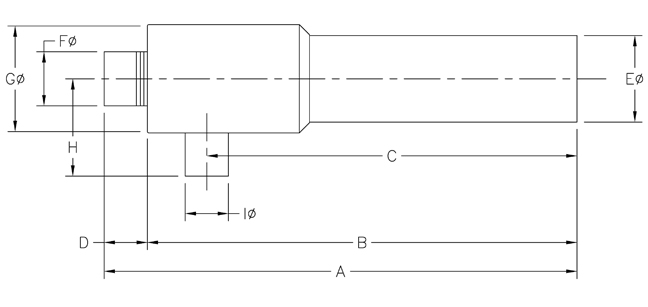

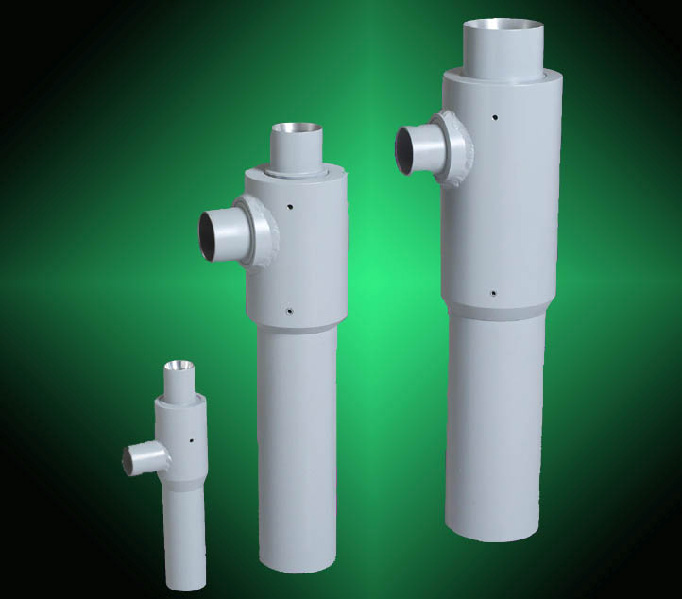

Model	A	B	C	D	E diameter	F diameter	G	H diameter	Weight lbs/kg	Part No.	Order Now
FX1.5	7.750 8.250	6.000	3.500	1.750 2.250	4.000	2.500	4.250	2.000 2.500	5.5 / 2.5	41319-01A	$502.00 each
FX1.5 with PTFE lining	7.750 8.250	6.000	3.500	1.750 2.250	4.000	2.500	4.250	2.000 2.500	5.5 / 2.5	41319-10	$851.00 each

Click filename to view Specification Sheets Filename   Description 18503-12 Venturi Principle of Operation 18503-95 FOX TrimAway® Venturi   18503-96 FOX TrimAway® Pick-Up Nozzle   18503-97 FOX TrimAway® Y Connector

Pick Up Nozzle
FX1, FX2 and FX3 Pick Up Nozzles	FX1, FX2 and FX3 Pick Up Nozzles

Pick Up Nozzle	A	B	C	Part No.
For FX1 Venturi	1.50	2.75	4.50	20222-19A
For FX2 Venturi	2.50	4.25	4.50	20222-18A
For FX3 Venturi	4.00	6.00	7.00	20222-21A
Pick Up Nozzle with PTFE lining	A	B	C	Part No.
For FX1 Venturi	1.50	2.75	4.50	20222-45
For FX2 Venturi	2.50	4.25	4.50	20222-46
For FX3 Venturi	4.00	6.00	7.00	20222-47

Wye Connector
FX1, FX2 and FX3 Wye Connector	Wye Connector

Wye Connector	A	B	C	Part No.
For FX1 Venturi	1.50	2.50	2.50	20222-22A
For FX2 Venturi	2.50	3.00	3.50	20222-23A
For FX3 Venturi	4.00	5.00	7.00	20222-20A
Wye Connector with PTFE lining	A	B	C	Part No.
For FX1 Venturi	1.50	2.50	2.50	20222-48
For FX2 Venturi	2.50	3.00	3.50	20222-49
For FX3 Venturi	4.00	5.00	7.00	20222-50

Regenerative Blower

Regenerative Blower

TYPICAL SYSTEM SIZING

BLOWER MODEL

click on model# to view drawing

300G

400G

350G

450G

500G

501G

600G

700G

800G

1015G

Venturi

Trim Width

# of Pickups

Conveying distance in feet

FX1

Up to 1"

1

25'

25'

40'

40'

50'

50'

50'

Up to 1"

2

15'

15'

35'

35'

50'

50'

50'

FX1.5

Up to 2"

1

15'

15'

25'

35'

50'

Up to 2"

2

15'

15'

25'

35'

50'

FX2

Up to 2"

1

25'

25'

50'

over 100'

over 100'

Up to 2"

2

20'

20'

45'

over 100'

over 100'

FX3

Up to 3"

1

40'

70'

over 100'

Up to 3"

2

35'

60'

over 100'

Instructions: Select your trim width Select the number of pickup points Select your conveying distance Look at the column header to determine blower model Look at furthest left column to determine venturi size

NOTE: This reference chart is for general approximation of system size. Many factors may require a change in system sizing, such as web speed, type of web, web thickness and web stiffness. Please contact CAC for an application specialist (800) 433-2413 to properly size a system to suit your specific requirements.

Approximate Dimensions (in inches)
Model	A	B	C	Weight (lbs.)
300G	11.25	11.66	12.82	41
400G	11.25	11.66	12.82	41
350G	13.26	13.61	15.22	61
450G	13.26	13.61	13.95	43
500G	13.56	13.80	16.44	76
501G	13.56	13.80	15.23	65
600G	15.17	15.34	17.35	112
700G	16.87	18.21	19.92	215
800G	18.00	20.02	22.28	293
1015G	20.63	22.63	26.13	452

Electrical Data
Electrical Data	Single Phase			Three Phase
Model	300G	350G	500G	400G	450G	501G	600G	700G	800G	1015G
Voltage	115/ 208-230	115/ 208-230	115/ 208-230	208-230/ 460	208-230/ 460	208-230/ 460	208-230/ 460	208-230/ 460	208-230/ 460	208-230/ 460
Current/ Amp	9.8/ 5.2-4.9	20.7/ 11.2-10.4	23.6/ 12.9-11.8	3.4-3.2/ 1.6	5.1-4.9/ 2.5	6.9-6.9/ 3.45	13.0-12.0/ 6.0	19.5-18.2/ 9.1	35.0-29.5/ 15.0	50.0-50.0/ 25.0
Output Horsepower	1.0	1.5	2.5	1.0	1.5	2.5	5.0	5.5	10.0	15.0

Noise Levels
Model	dBa at vacuum	Part No.
300G	70-72	20222-51
400G	70-72	20222-52
350G	73-74	20222-53
450G	73-74	20222-54
500G	75-76	20222-55
501G	75-76	20222-56
600G	78-80	20222-57
700G	81-85	20222-58
800G	85-87	20222-59
1015G	85-90	20222-60

• Data is highest sound level out of 4 places around the blower at 1 meter.
• Data represents average of several units run at nominal voltage.
• Lowest to highest maximum dba level throughout performance range is shown.
• Readings at other than the maximum around the blower at 1 meter may be from 2 to 10 dba less than data shown.
• Readings taken in a laboratory sound room that does not reflect much noise.

Silencers

Silencers

(in inches)
Model	A	B	C	Part No.
300, 350, 400, 450, 500, 501	12.75	3.25	1 1/2 NPT	20222-73
600, 700	17.05	3.63	2 NPT	20222-74
800	17.44	4.25	2 1/2 NPT	20222-75
1015	20.25	4.75	3 NPT	20222-76

Filters and Filter Elements (in inches)

Filters and Filter Elements

(in inches)
Model	A	B	C	Filter Part No.	Element Part No.
300, 350, 400, 450, 500, 501	7.70 Ø	7.25	1 1/2 MPT	20222-61	20222-62
600, 700	10.63 Ø	4.81	2 FPT	20222-63	20222-64
800	10.00 Ø	13.12	2 1/2 MPT	20222-65	20222-66
1015	16.00 Ø	14.625	5 MPT	20222-67	20222-68

Flexible Duct Components

Available in 5' increments up to 50'

Flexible neoprene motive duct (blower input)
Venturi Model	Diameter A	Length B	Min Bending Radius C	Duct Length for 90° Bend D	Part No.
FX1	1.50"Ø	per 5' up to 25'	1.3'	2.0'	20222-109
FX2, FX3	2.00"Ø	per 5' up to 25'	1.3'	2.0'	20222-110
FX2, FX3	2.50"Ø	per 5' up to 25'	1.6'	2.5'	20222-111
FX3	3.00"Ø	per 5' up to 25'	1.6'	2.5'	20222-112
FX3	4.00"Ø	per 5' up to 25'			20222-113

Available in 5' increments up to 50'

Flexible steel intake duct (venturi vacuum)
Venturi Model	Diameter A	Length B	Min Bending Radius C	Duct Length for 90° Bend D	Part No.
FX1	1.50"Ø	per 5' up to 50'	7"	2.0'	20222-114
FX2	2.50"Ø	per 5' up to 50'	2.2'	3.5'	20222-118
FX2	3.00"Ø	per 5' up to 50'	2.6'	4.0'	20222-120
FX3	4.00"Ø	per 5' up to 50'	3.5'	5.5 ft	20222-122
FX1	1.50"Ø	per 5' with PTFE up to 10'	7"	2.0'	20222-115
FX2	2.50"Ø	per 5' with PTFE up to 10'	2.2'	3.5'	20222-119
FX2	3.00"Ø	per 5' with PTFE up to 10'	2.6'	4.0'	20222-121
FX3	4.00"Ø	per 5' with PTFE up to 10'	3.5'	5.5'	20222-123

Available in 5' increments up to 50'

Flexible steel discharge duct
Venturi Model	Diameter A	Length B	Min Bending Radius C	Duct Length for 90° Bend D	Part No.
FX1	2.00"Ø	per 5' up to 50'	2.0'	3.0'	20222-116
FX1	3.00"Ø	per 5' up to 50'	2.6'	4.0'	20222-120
FX2, MR2	4.00"Ø	per 5' up to 50'	3.5'	5.5'	20222-122
FX3, MR3	5.00"Ø	per 5' up to 50'	4.0'	6.5 ft	20222-124
FX1	2.00"Ø	per 5' with PTFE up to 10'	2.0'	3.0'	20222-117
FX1	3.00"Ø	per 5' with PTFE up to 10'	2.6'	4.0'	20222-121
FX2, MR2	4.00"Ø	per 5' with PTFE up to 10'	3.5'	5.5'	20222-123
FX3, MR3	5.00"Ø	per 5' with PTFE up to 10'	4.0'	6.5'	20222-125

Rigid Duct Components

Straight Rigid Motive Duct Available in carbon steel, zinc, galvanized coated steel, aluminum and stainless steel

Straight Rigid Motive Duct (blower input)
Venturi Model	Diameter A	Length B	Gauge	Part No.
FX2, FX3	2.50"Ø	20'	16	20222-126
FX3	3.00"Ø	20'	16	20222-128
FX3	4.00"Ø	20'	16	20222-130

Straight Rigid Intake Duct (venturi vacuum)
Venturi Model	Diameter A	Length B	Gauge	Part No.
FX2	2.50"Ø	20'	16	20222-126
FX2	3.00"Ø	20'	16	20222-128
FX3	4.00"Ø	20'	16	20222-130
FX2	2.50"Ø	10' with PTFE lining	16	20222-127
FX2	3.00"Ø	10' with PTFE lining	16	20222-129
FX3	4.00"Ø	10' with PTFE lining	16	20222-131

Straight Rigid Discharge Duct (venturi pressure)
Venturi Model	Diameter A	Length B	Gauge	Part No.
	3.00"Ø	20'	16	20222-128
FX2, MR2	4.00"Ø	20'	16	20222-130
FX3, MR3	5.00"Ø	20'	14	20222-132
	3.00"Ø	10' with PTFE lining	16	20222-129
FX2, MR2	4.00"Ø	10' with PTFE lining	16	20222-131
FX3, MR3	5.00"Ø	10' with PTFE lining	14	20222-133

45° Long radius bend duct Available in carbon steel, zinc, galvanized coated steel, aluminum and stainless steel

45° Long radius bend rigid motive duct (blower output) in inches
Venturi Model	Diameter A	Length B	Gauge	Part No.
FX2, FX3	2.50" Ø	36" radius	16	20222-134
FX3	3.00" Ø	48" radius	16	20222-136
FX3	4.00" Ø	48" radius	16	20222-138

45° Long radius bend rigid intake duct (venturi vacuum)
Venturi Model	Diameter A	45° Angle R	Gauge	Part No.
FX2	2.50" Ø	36" radius	16	20222-134
FX2	3.00" Ø	48" radius	16	20222-136
FX3	4.00" Ø	48" radius	16	20222-138
FX2	2.50" Ø	36"radius with PTFE lining	16	20222-135
FX2	3.00" Ø	48" radius with PTFE lining	16	20222-137
FX3	4.00" Ø	48" radius with PTFE lining	16	20222-139

45° Long radius bend rigid discharge duct (venturi pressure) in inches
Venturi Model	Diameter A	45° Angle R	Gauge	Part No.
	3.00" Ø	48" radius	16	20222-136
FX2, MR2	4.00" Ø	48" radius	16	20222-138
FX3, MR3	5.00" Ø	48" radius	14	20222-140
	3.00" Ø	48" radius with PTFE lining	16	20222-137
FX2, MR2	4.00" Ø	48" radius with PTFE lining	16	20222-139
FX3, MR3	5.00" Ø	48" radius with PTFE lining	14	20222-141

90° Long radius bend duct Available in carbon steel, zinc, galvanized coated steel, aluminum and stainless steel

90° Long radius bend rigid motive duct (blower output) in inches
Venturi Model	Diameter A	Length B	Gauge	Part No.
FX2, FX3	2.50" Ø	36" radius	16	20222-142
FX3	3.00" Ø	48" radius	16	20222-144
FX3	4.00" Ø	48" radius	16	20222-146

90° Long radius bend rigid intake duct (venturi vacuum) in inches
Venturi Model	Diameter A	90° Angle R	Gauge	Part No.
FX2	2.50" Ø	36" radius	16	20222-142
FX2	3.00" Ø	48" radius	16	20222-144
FX3	4.00" Ø	48" radius	16	20222-146
FX2	2.50" Ø	36" radius with PTFE lining	16	20222-143
FX2	3.00" Ø	48" radius with PTFE lining	16	20222-145
FX3	4.00" Ø	48" radius with PTFE lining	16	20222-147

90° Long radius bend rigid discharge duct (venturi pressure)
Venturi Model	Diameter A	90° Angle R	Gauge	Part No.
	3.00" Ø	48" radius	16	20222-144
FX2, MR2	4.00" Ø	48" radius	16	20222-146
FX3, MR3	5.00" Ø	48" radius	14	20222-148
	3.00" Ø	48" radius with PTFE lining	16	20222-145
FX2, MR2	4.00" Ø	48" radius with PTFE lining	16	20222-147
FX3, MR3	5.00" Ø	48" radius with PTFE lining	14	20222-149

Additional Components

Duct couplings for flexible duct (includes coupling & 2 duct clamps) in inches
Diameter A	Length B	Part No.
1.50" Ø	6.00"	20222-150
2.00" Ø	6.00"	20222-152
2.50" Ø	6.00"	20222-154
3.00" Ø	6.00"	20222-156
4.00" Ø	6.00"	20222-158
5.00" Ø	6.00"	20222-160
1.50" Ø	6.00" with PTFE	20222-151
2.00" Ø	6.00" with PTFE	20222-153
2.50" Ø	6.00" with PTFE	20222-155
3.00" Ø	6.00" with PTFE	20222-157
4.00" Ø	6.00" with PTFE	20222-159
5.00" Ø	6.00" with PTFE	20222-161

Compression couplings for rigid duct (galvanized, rubber gasket, galvanized bolts) in inches
Diameter A	Length B	Part No.
2.50" Ø	4.00"	20222-162
3.00" Ø	6.00"	20222-163
4.00" Ø	6.00"	20222-164
5.00" Ø	6.00"	20222-165

Tubing hangers (16 ga. zinc coated steel only) in inches
Diameter A	B	C	D	Part No.
2.50" Ø	1.00"	2.38"	0.50"	20222-166
3.00" Ø	1.00"	2.63"	0.50"	20222-167
4.00" Ø	1.00"	3.00"	0.50"	20222-168
5.00" Ø	1.00"	3.50"	0.50"	20222-169
