• lower first cost
• lower operative cost
• less noise

• System Design

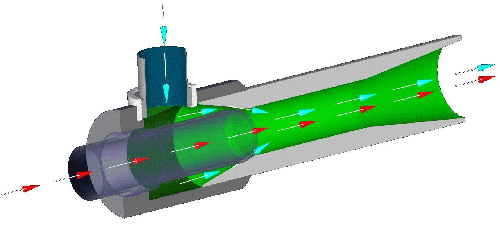

  The FOX TrimAway® System uses a regenerative blower to generate a motive air stream at significantly higher pressures than that of a conventional blower. A unique venturi design is used to convert this output into the high velocity required for efficient material transport. This combination yields outstanding performance with typically 50% in energy savings over axial blower type systems.

• Modular Components
  As with all CAC systems and accessories, by using modular components the FOX TrimAway® System can be matched to specific requirements of each individual customer specifications by offering a complete range of regenerative blowers (1 to 15 horsepower). These components are then matched by application engineers to the specific requirements of each application.

Features:

• Venturi Construction
  Material: Aluminum, PTFE lining available.
  Unique design: Motive flow rate may be adjusted to optimize performance.

• Regenerative Blower Construction
  Mounting base, impeller and housing manufactured of aluminum allow for maximum strength, reduced weight and increased corrosion resistance. Totally enclosed, fan-cooled motor with thermal overload protection. Direct drive motor/blower combination dynamically balanced for reliability.

• Ducting
  Plastic, metal and PTFE-lined ducting is available.
• Complete

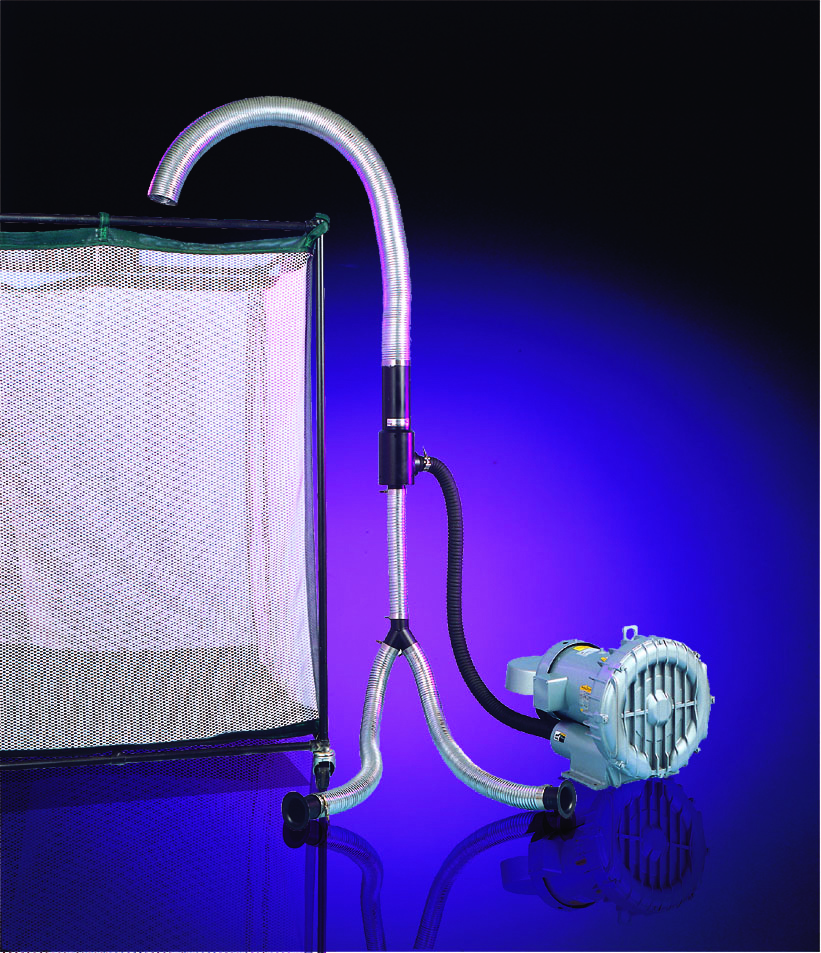

  The FOX TrimAway System is supplied with all necessary intake and discharge ducting and fittings to make a ready-for-installation system.
• Quiet
  Noise levels well below conventional systems. Silencing mufflers are not required to meet OSHA standards.
• Energy Efficient
  Power consumption reduced in half: Only one HP is required for most waste removal applications.
• Compact
  Typical venturi/blower combination occupies approximately one cubic foot
• Versatile Mounting
  Compact venturi may be mounted at point of use or integrally with blower.
