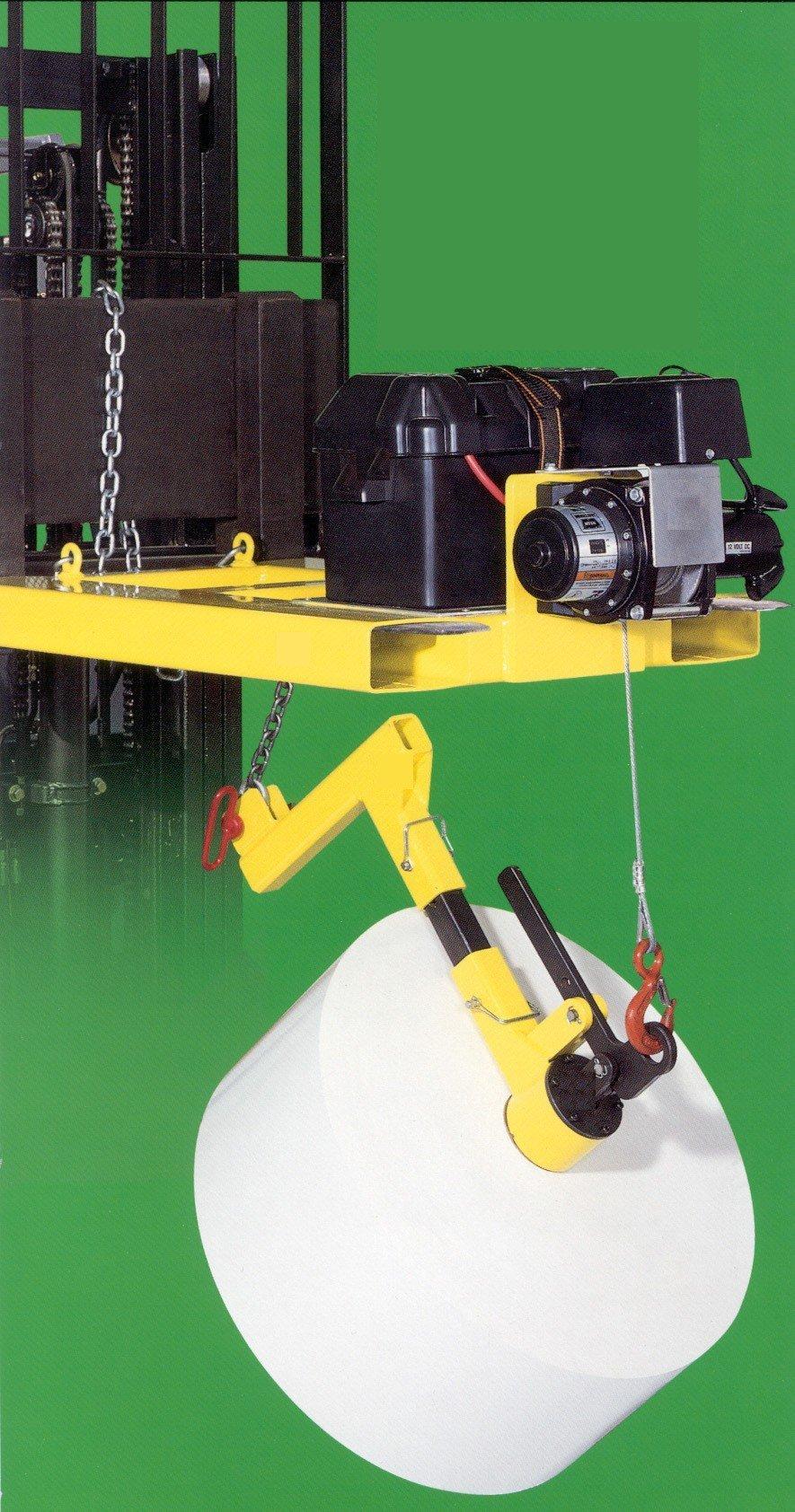

Fork Truck Rol-handlR™

DC Electric Hoist:
The CAC® Fork Truck Rol-handlR™ incorporates a specially selected hoist featuring a heavy duty load brake. It also features a quiet, efficient 3 stage planetary gear train designed for load lifting ideally suited for lifting and turning rolls. Roll turn cycle time is less than 6 seconds.

Base Frame:
Rectangular steel tubing, quality controlled weldmarks, the CAC® Base Frame smoothly and easily slides on truck forks. Frame is attractively finished in a beautiful OSHA oriented material handling yellow. To load cantilever shafts order hoist and suspending chain reversed on frame.

Center Lift:
Available in 3" and 6" I.D. core sizes as standard production models. Specially designed hardened steel grippers, two on each side, engage the core when lifting. The grippers lock in direct proportion to the amount of load they are lifting. It is impossible to disengage when the center lift is carrying weight; an important safety feature. Simply, effortlessly, the case hardened handle is manually raised to withdraw center lift from the core. The CAC® Center Lift is finished in a rust proofed black ozide.

"L" Roll Pivot Arm
Heavy duty steel tubing easily rotates from 2 point suspension, and adjusts for varying roll diameters and widths.

Our Fork Truck Rol-handlR™ features:

• Maximum safety in handling rolls
• Saves back injuries
• Features a two point flexible suspension of the roll center lift enabling easy alignment with the roll core
• Mount to any material handling device that uses forks -
  instantly changing it to a roll handling device
• Grips the roll by the core, eliminates chance of roll edge damage
• Obtains true horizontal and vertical positioning of rolls
• Backed by CAC's over 30 years of experience and manufacturing converting equipment.
