Slitting Systems


Shear Cut Edge Trim Assembly In-Line Slitting Assembly


Shear Cut Edge Trim Assembly


Features and benefits:

  • Top and bottom blades are mounted on one assembly to provide simultaneous movement.
  • Top blade has automatic air operated side loading.
  • Bottom blade can be driven.
  • Used for shear cut slitting applications.
  • Ideal for use with all types of materials.
  • Compact design.
  • Fits in any location on existing equipment.
  • Easy installation - four mounting holes.
  • No special framework or customer modifications required.
  • Carriage travel can accommodate narrow to wide web width variations.
  • Can be used with existing trim removal system.
  • Integral CAC pneumatic trim removal systems are available.
  • Backed by CAC's over 42 years of experience designing and manufacturing equipment for the converting industry.


Click Here to Request Additional Information

Click Here to Download literature in PDF format



Shear Cut Edge Trim Assembly


Shear Cut Edge Trim Assembly Right Side


Shear Cut Edge Trim Assembly Left Side

Click filename to view Specification Sheets
Filename  Description
18503-27 Shear Cut Edge Trim Assembly with Motor Drive Option
18503-28 Shear Cut Edge Trim Assembly without Motor Drive Option
18503-87 Air Manifold System

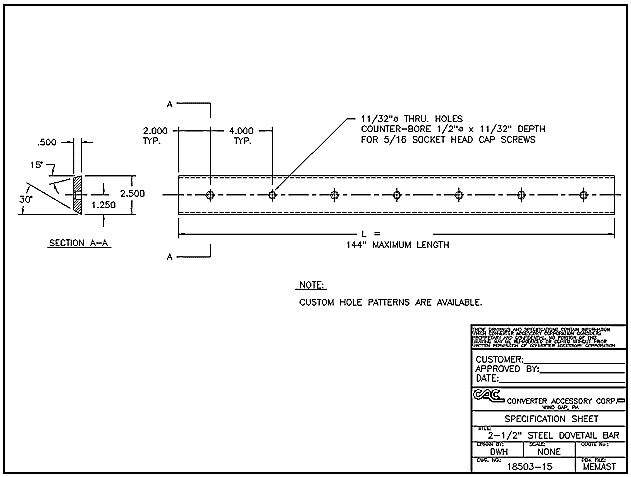

18503-15 2-1/2" Steel Dovetail Bar

RETURN TO TOP



In-Line Slitting Assembly

The ILS ReadyFit is designed to be easily and quickly added to any web based converting operation. The system is available in web widths from 5 to 120 inches and runs at speeds to 2000 feet per minute. It is effective when employed in the most basic web driven score cutting operations as well as the most advanced, external drive shear cutting processes. It may be ordered with optional razor cut units or used with standard knife holders and blades.

In addition to being easily retro fitted, the system is easy to use, ruggedly constructed and exceptionally versatile. CAC's ILS ReadyFit slitters are effective with all conventional materials including film, paper, foils and textiles.

For converters looking for a complete edge trim removal solution, the ILS ReadyFit is engineered for a smooth integration with any of CAC’s web enhancement modules, including the widely used Fox trim removal systems, web guiding technology and more.		 Inline Score Cut Slitting Unit
Inline Score Cut Slitting Unit
Features and benefits:
  • Cost effective.
  • Ideal for all web-fed converting equipment.
  • Pneumatic slitter holders available in score cut, shear cut and razor cut.
  • Well suited for all types of materials, widths from 5" - 120", speeds up to 2,000 FPM.
  • Can be used for edge trim and multiple slit widths.
  • Simple operation-manual adjustments for easy centering of blade to grooved bottom roll or knives.
  • Units available as simple web driven, score cut units to more complex self driven shear cut units.
  • Constructed of structural steel weldments for maximum strength and rigidity.
  • Easy retrofits to existing equipment.
  • Custom engineered to fit your machine for easy, fast, efficient set up.
  • Mounting frame facilitates installation, operation and maintenance.
  • Designed specifically for converters who want to add slitting to an already existing process.
  • When used for edge trimming - we can combine fox systems and choppers for complete edge trim and removal systems.
  • Add web guiding for increased web accuracy.
  • CAC can supply lead in and lead out idlers to accomodate any web path desired.
  • Standard shear cut edge trim assemblies available when only edge trimming is required.
  • Steel frame design maked this system very rugged.
  • Backed by CAC's over 42 years of experience designing and manufacturing equipment for the converting industry.

Click Here to Request Additional Information

Click Here to Download literature in PDF format


In-line Slitting Assembly

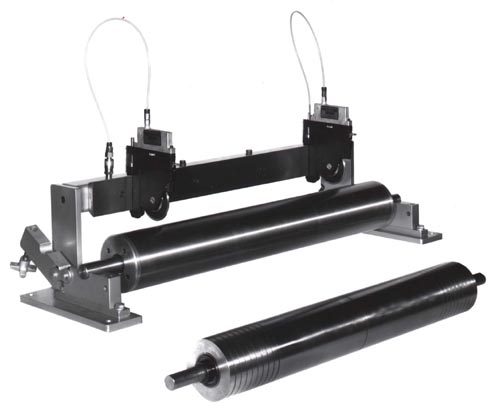

3D Inline Slitting System
3D Inline Slitting System

Photo shows hardened steel anvil roll.
Available with shear cut bottom knives and grooved rolls for razor slitting.

RETURN TO TOP
