CAC Products >>> Anti-wrinkle devices >>>  Adjusta-Pull Anti-Wrinkle System

Tech tip: Chopped Edge Trim May Require an Air Separator


Air Loaded Adjusta-Pull Nip Type Anti-Wrinkle System

Adjusta-Pull Spreader Rolls

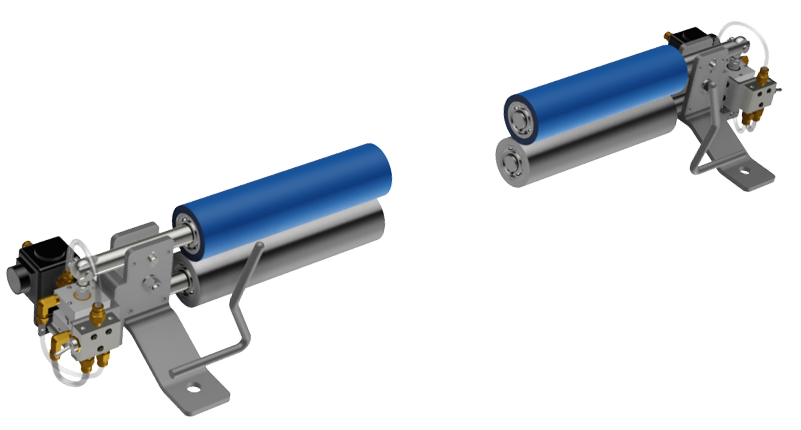

Air Loaded Adjusta-Pull Anti-Wrinkle System


Unique Adjusta-Pull Concept

CAC's new Air loaded Adjusta-Pull anti-wrinkle system is a remarkably efficient and cost effective method for wrinkle removal and web spreading. This system works using the web handling principal that a web will seek to be perpendicular to a roll in its entry span to that roll.

Air loaded Adjusta-Pull assemblies incude two nip assemblies. Each nip assembly consists of two 9" or 6" face x 2.5" diameter rollers. Standard air loaded Adjusta-Pull assemblies each have one rubber covered roller and one metal roller. The nip assemblies are mounted on each edge of your web and are in traction (because of the nipping action) with each edge of your web.

The Air loaded Adjusta-Pull assemblies are easy to open and close which allows fast and easy web threading and include a pressure regulator to accurately adjust the air pressure to accommodate all types of material including delicate webs. They can be designed to allow remote open and close functionality.

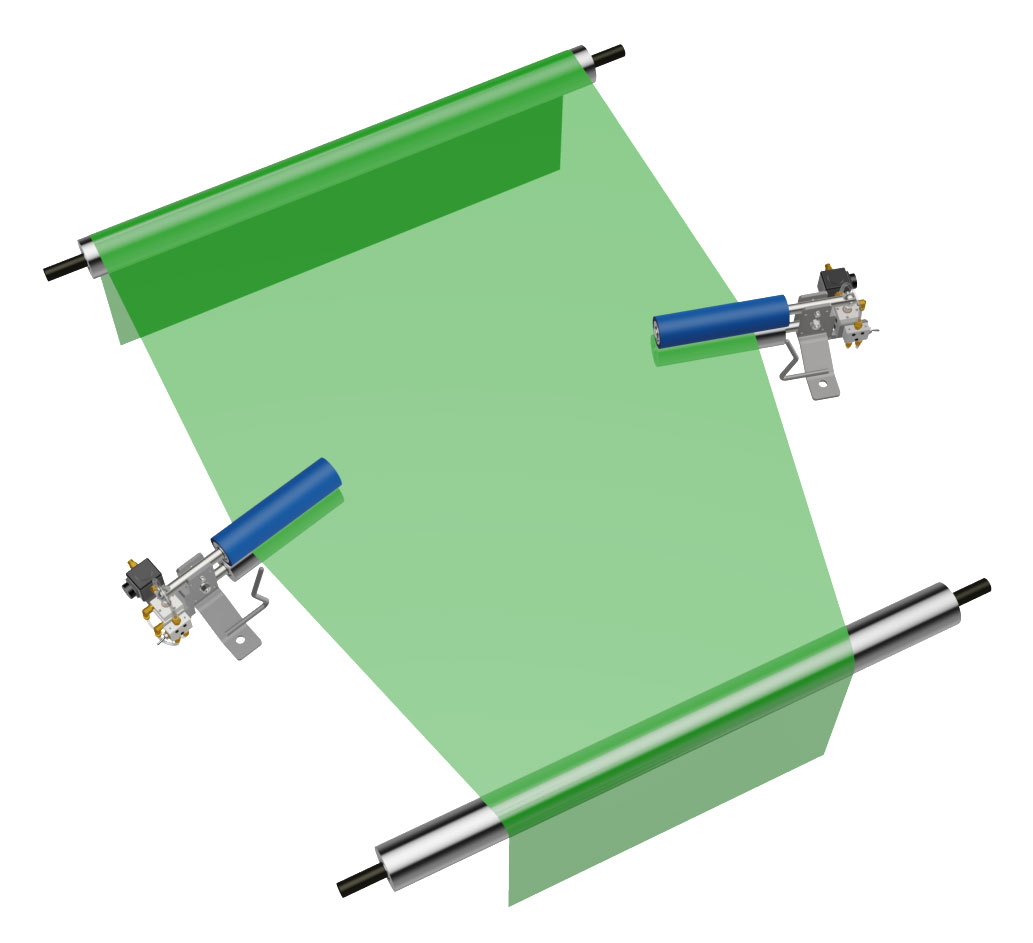

When the nip assemblies are angled away from each other, each of the webs edges will try to maintain a 90 degree angle to each nip assembly. So, this anti-wrinkle device effectively and aggressively pulls on each edge of your web to remove wrinkles. Increasing the angular displacement of each nip assembly increases anti-wrinkle aggression. The greater the angular displacement of each nip assembly the greater the anti-wrinkle aggression.

Click here for specifications on our Adjusta-Pull Spreaders!



  • Effectively and aggressively removes wrinkles
  • Air loaded for very fine pressure adjustment - perfect for very delicate to the toughest web
  • Air loaded for fast and easy web threading
  • Remote open / close possible
  • Rollers with ball bearings, designed for long trouble free life
  • Typically in stock for fast delivery
  • Easy installation.
  • NEW mounting bracket system is available.
  • Made in the USA.
  • Backed by CAC's over 43 years of experience designing and manufacturing equipment for the converting industry.

Adjusta-Pull Spreader Rolls

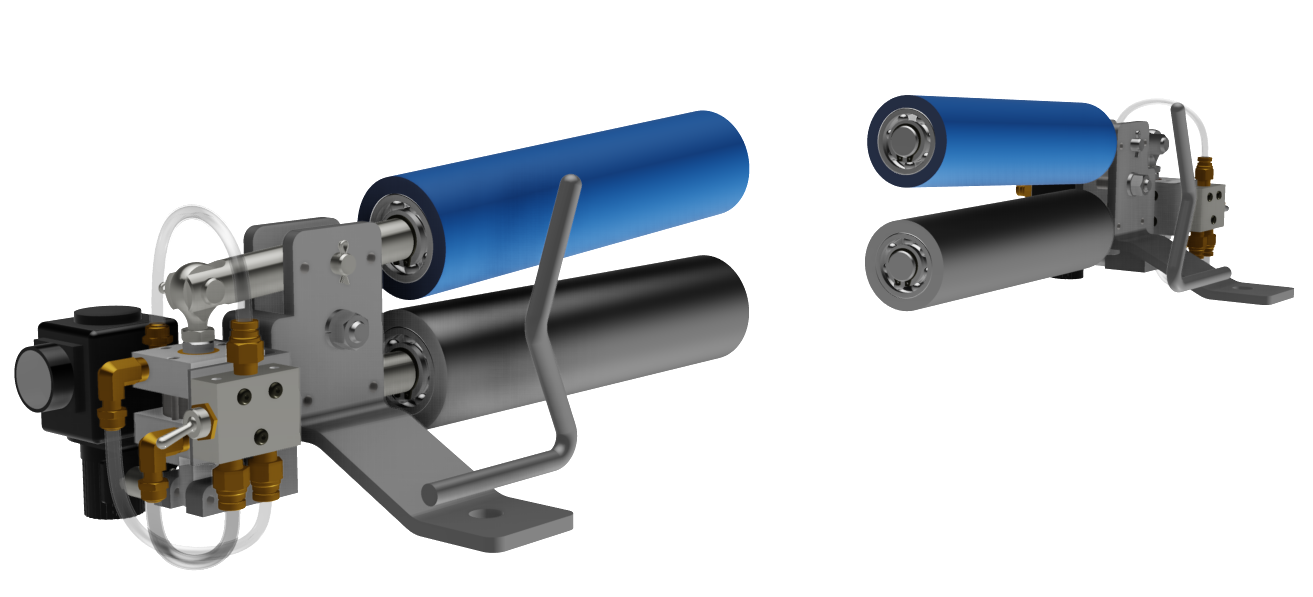

Air Loaded Adjusta-Pull Anti-Wrinkle System Open


Click filename to view Specification Sheets
Filename  Description
18503-66 Adjusta-Pull Nip Type Spreaders
18503-322 Air Loaded Adjusta-Pull Nip Type Spreaders

3D Adjusta-Pull Nip Type Spreader Rolls



3D Adjusta-Pull Anti-Wrinkle System





Mounting Bracket with Angular Adjustment available - click here for more information


Adjusta-Pull mounting bracket with Angular Adjustment


Read the latest news on our Anti-Wrinkle Devices


Click here to request additional information



Check out our other Anti-Wrinkle solutions


WrinkleSTOP® NO-BOW
Anti-Wrinkle Roll
Adjusta-Pull Anti-Wrinkle System


Bowed Roll Mounting Bracket with Angular Adjustment for Adjusta-Pull Anti-Wrinkle System

Scroll Roll
