CAC Products >>> Anti-wrinkle devices >>>  WrinkleSTOP® NO-BOW Anti-Wrinkle Roll


Tech tip: Why is roll handling important to me?


5.5" Diameter WrinkleSTOP®

3.375" Diameter WrinkleSTOP®

3.375" Diameter Cantilevered WrinkleSTOP®

Inside the WrinkleSTOP®

8" Diameter WrinkleSTOP®

WrinkleSTOP® No-Bow Anti-Wrinkle Roll

WrinkleSTOPs® in stock - order today!

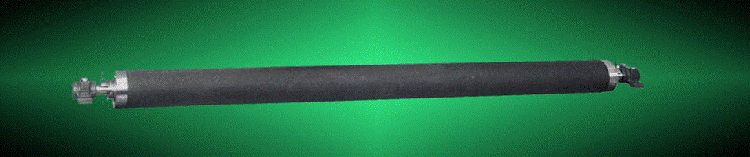

CAC WrinkleSTOP Expanding Roll

Works well on all types of material, including: cloth, paper, foil, film, plastics and nonwovens



Call today for quick delivery!

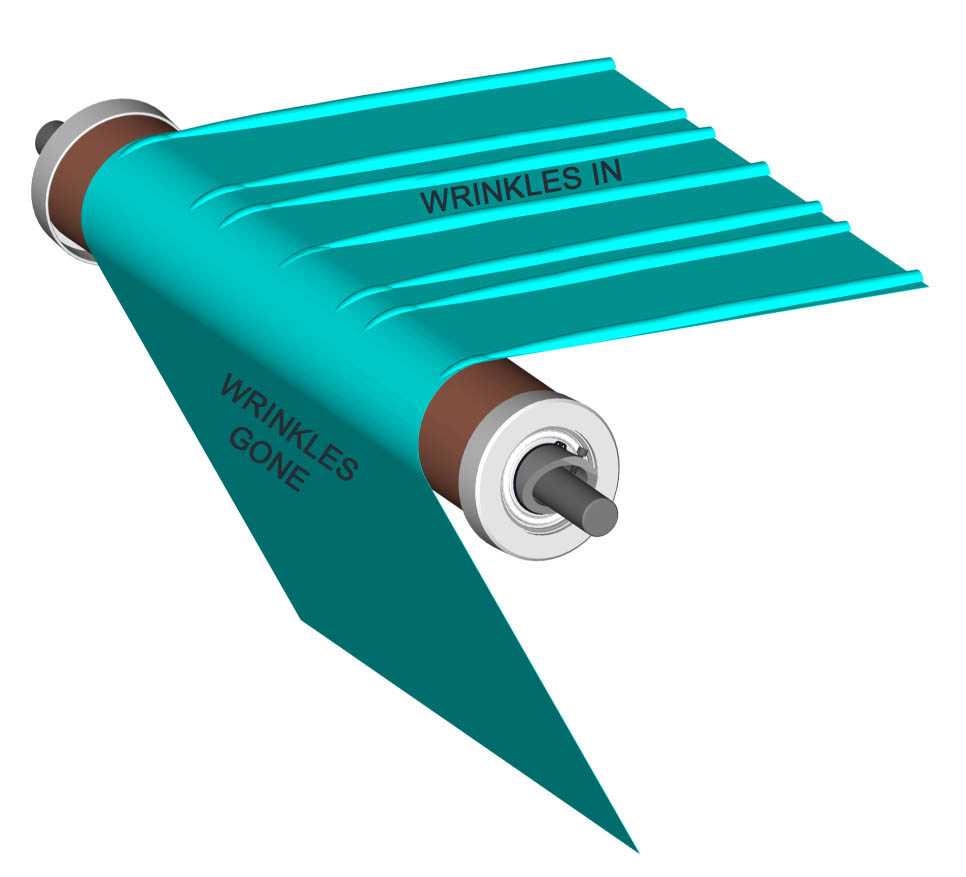

3D WrinkleStop removing wrinkles3D WrinkleStop removing wrinkles


  • Bowless, smooth roll provides zero-web distortion:
    Won't mark, stretch, introduce wrinkles into the web, or send non-level web into other level sensitive devices such as moisture or weight meters. Prevents stressed or torn web center areas and altered centerline travel.

  • Independent edge-to-edge adjustability while the web is in motion:
    Degree of expansion can be quickly altered at each end cap, allowing correction of distortion produced at earlier points in the line. This provides total control of spreading action to match your requirements.

  • No special tools needed to adjust degree of spreading action:
    Provides productive, cost-effective performance.

  • Works well in vacuum chambers and can be used to run in high-heat applications:
    Provides highly reliable, productive performance.

  • Easy installation:
    Directly replaces existing anti-wrinkle rolls or idlers.

  • Accepts and delivers web at any angle:
    Saves space in your plant line, improves web runs, and allows replacement of existing limited-angle roll arrangements with fewer rolls.

  • Surface designed for high traction:
    Stretchable rubber sleeve maintains high traction without surface glazing.

  • Works well with extremely short lead-in and lead-out web distances:
    Increases productivity while saving space.

  • Drive sheave available:
    Perfect for light webs.

  • Available in various diameters and widths:
    3.375" Diameter up to 20" face width for up to 500 FPM
    5.5" Diameter up to 100" face width for up to 1000 FPM
    8" Diameter up to 200" face width for up to 3000 FPM

  • Versatile:
    Can be designed to work in corrosive atmosphere applications, as well as food and pharmaceutical applications.

  • Static conductive roll face available


Wrap Angle
% End Cap Displacement
% Spread
90°
0
0
50
25
100
50
120° - 180°
0
0
50
50
100
100
CAC Converter Accessory Corporation
RETURN TO TOP

Inside the WrinkleSTOP®
Surface remains smooth and linear (no bow)
Cut away image of the WrinkleSTOP® Spreader Roll

Adjustments:

  • Are made from each end independently.
  • Can be made while web is in motion.
  • Are made with standard tools.
  • Are set from 0-100% spreading.

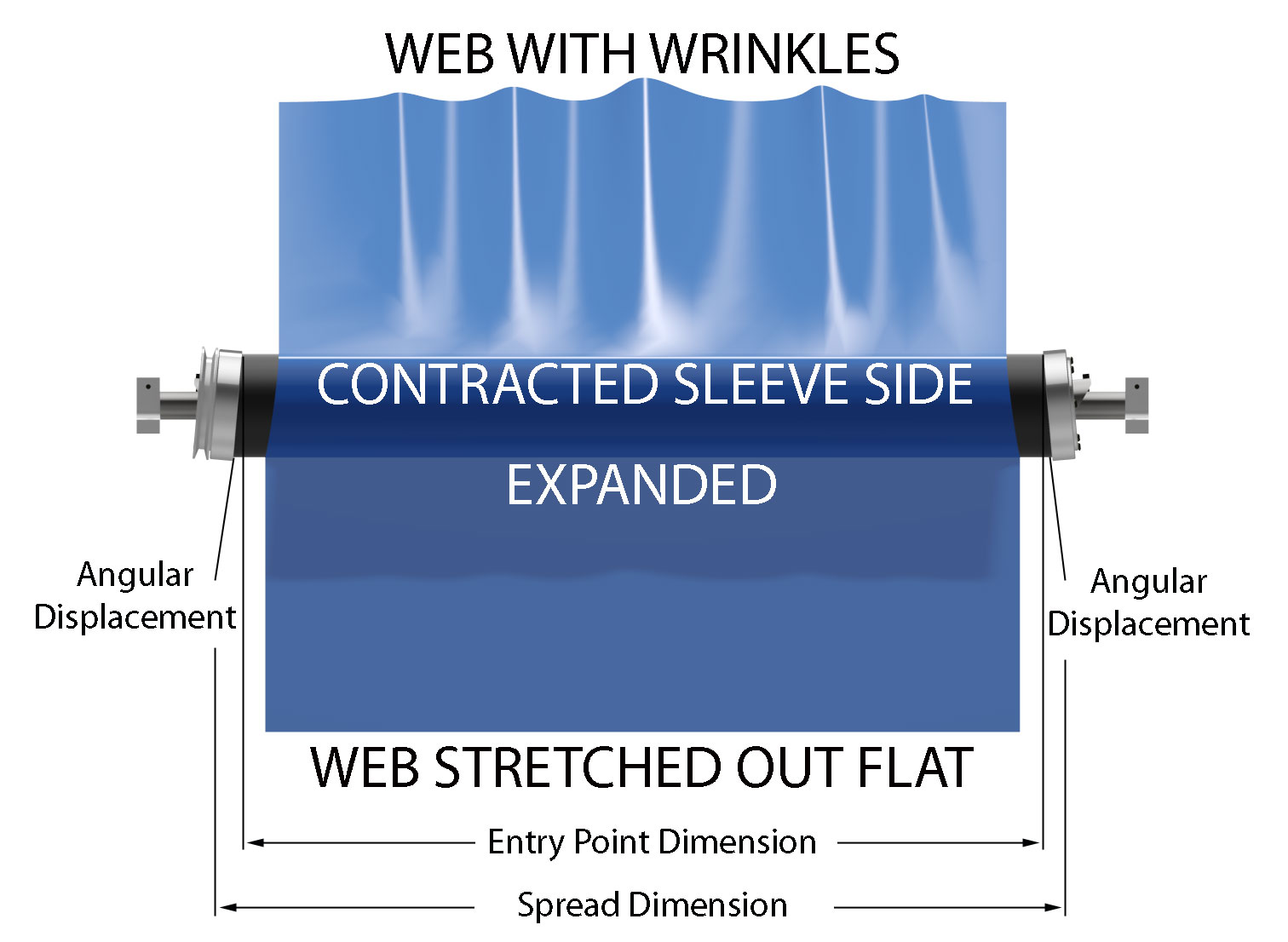

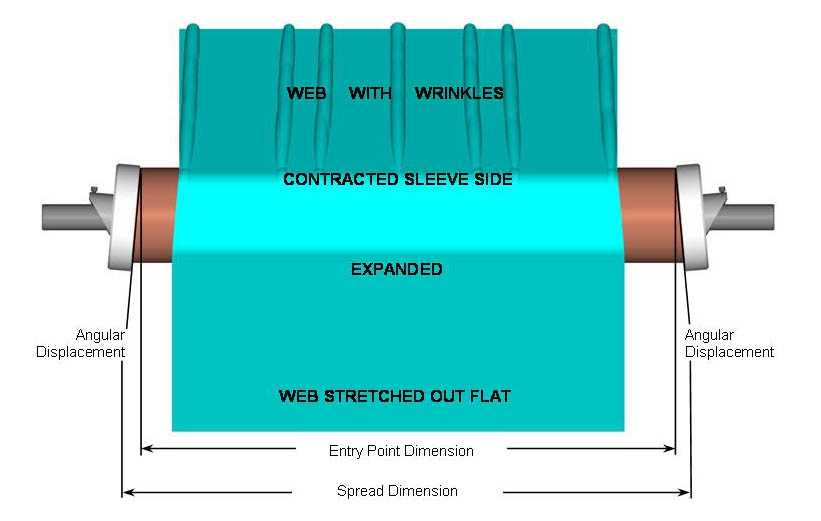

Web enters contracted side
Cut away image of the WrinkleSTOP® Spreader Roll
Web exits expanding side


CAC Converter Accessory Corporation
RETURN TO TOP
5.5" Diameter WrinkleSTOP®

WrinkleSTOP Spreader Roll
Design Parameters:
  • Maximum roll face: 100" (96" web width)
  • Maximum web speed: 1000 feet per minute
  • Maximum web tension: 12 pounds per linear inch
  • Minimum turning force: .25 pounds per linear inch
  • Approximate roller weight: 13 pounds + 1.7 pounds per inch of face
  • Dead shaft construction
  • 50 Durometer neoprene sleeve
Options:
  • Flange type mounting brackets
  • Drilled and tapped ends
  • Drive Sheave
  • Various sleeve materials
WrinkleSTOP Spreader Roll end caps
Optional drive sheave
6.000" Outside diameter
5.600" Pitch diameter - B Belt
5.200" Pitch diameter - A Belt
Download PDF
or Autocad file
Request a quote
CAC Converter Accessory Corporation
RETURN TO TOP

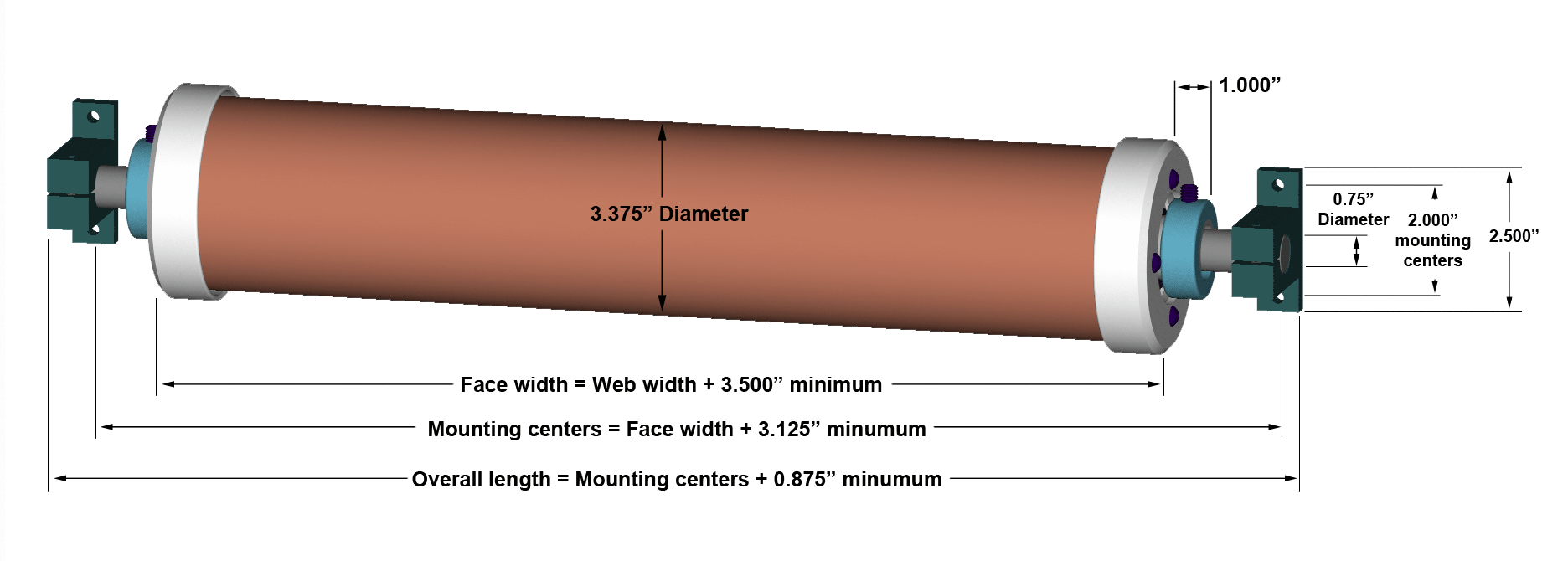

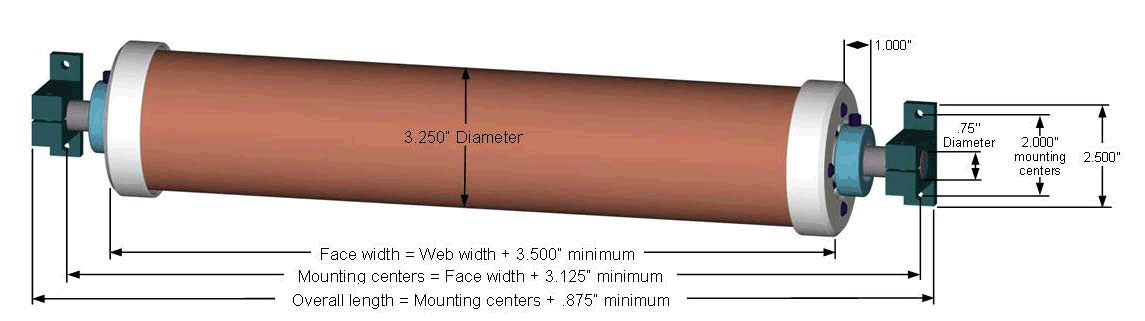

3.375" Diameter WrinkleSTOP®

CAC WrinkleSTOP Anti Wrinkle Roll
Design Parameters:
  • Maximum roll face: 20" (16.5" web width)
  • Maximum web speed: 500 feet per minute
  • Maximum web tension: 4 pounds per linear inch
  • Minimum turning force: .17 pounds per linear inch
  • Approximate roller weight: 7 pounds + .75 pounds per inch of face
  • Dead shaft construction
  • 50 Durometer neoprene sleeve
Options:
  • Flange type mounting brackets
  • Drilled and tapped ends
  • Drive Sheave
  • Various sleeve materials
WrinkleSTOP Spreader Roll end cap
Optional drive sheave
4.875" Outside diameter
4.575" Pitch diameter - B Belt
4.275" Pitch diameter - A Belt
Download PDF
or Autocad file
Request a quote


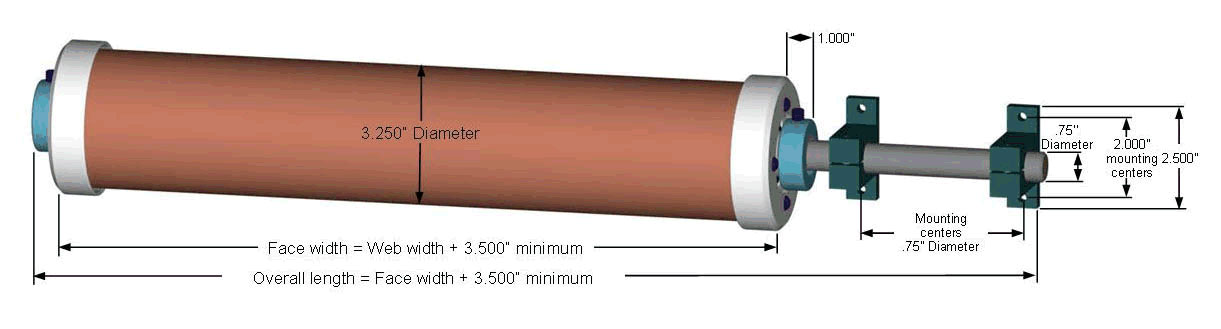

3.375" Diameter Cantilevered WrinkleSTOP®

CAC WrinkleSTOP Spreader Roll
Download PDF
or Autocad file
Request a quote
CAC Converter Accessory Corporation
RETURN TO TOP

8" Diameter WrinkleSTOP®

WrinkleSTOP Spreader Roll
Design Parameters:
  • Maximum roll face: 200" (188" web width)
  • Maximum web speed: 3000 feet per minute
  • Maximum web tension: 12 pounds per linear inch
  • Minimum turning force: .25 pounds per linear inch
  • Approximate roller weight: 75 pounds + 3.8 pounds per linear inch
  • Dead shaft construction
  • 50 Durometer neoprene sleeve
Options:
  • Flange type mounting brackets
  • Various sleeve materials
  • Optional drive sheave
Request a quoteCAC Converter Accessory Corporation

RETURN TO TOP

Of all the wrinkle removal devices presented during a CEMA annual meeting in St. Paul Minnesota (presentation by a major corporation as part of an independent study), only expanding surface type rolls removed all of the wrinkles all of the time. The presentation included curved axis rolls, metal grooved rolls, rubber grooved rolls, masking taped rolls, Teflon® taped rolls and tapered rolls.

Converter Accessory Corporation's patented WrinkleSTOP® and Multi-Adjust® WrinkleSTOP® rolls are the only smooth surface, linear, adjustable, expanding surface rolls on the market.

Expanding Surface Rolls: The only wrinkle removal system in a recent major independent presentation to remove all of the wrinkles, all of the time!


Wrinkle free web

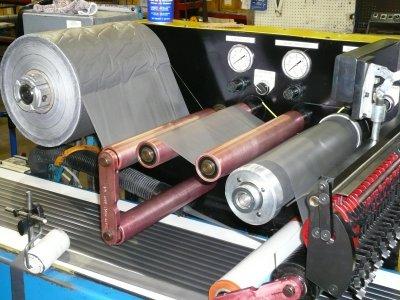

WrinkleSTOP® in operation
CAC Converter Accessory Corporation
RETURN TO TOP
Read the latest news on our Anti-Wrinkle Devices

Click Here to Request Additional Information

CAC WrinkleSTOPs® are manufactured under U.S. Patent Number: 9,677,211
So what's the return on investment?
Click Here!

RETURN TO TOP

Check out our other Anti-Wrinkle solutions


WrinkleSTOP® NO-BOW
Anti-Wrinkle Roll
Adjusta-Pull Anti-Wrinkle System


Bowed Roll Mounting Bracket with Angular Adjustment for Adjusta-Pull Anti-Wrinkle System

Scroll Roll



Click Here to go to the home page
Converter Accessory Corporation
201 Alpha Road
P.O. Box 188
Wind Gap PA 18091-0188

Phone (800) 433-2413 or (610) 863-6008
Fax (800) 709-1007 or (610) 863-7818

sales@converteraccessory.com

www.converteraccessory.com



What is Web Handling?
Web Handling is the science, engineering and equipment necessary to successfully transport a continuous flexible material through various processes without defect. Enhancing Web Handling with proper equipment will ensure materials are processed at their maximum efficiency, allowing the process to generate maximum profits.
