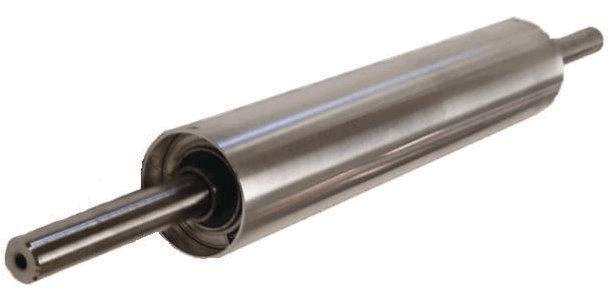

Standard Aluminum Idler Rolls



Features:
  • O.D. Turned and Polished.
  • Concentricity within .003 (may vary for large roll diameters and long face lengths - please contact us for more information).
  • Low Friction Bearings Standard.
  • Super Low Friction Bearings Available (no seals, light oil lube).
  • Backed by CAC's over years of experience designing and manufacturing equipment for the converting industry.





Available roll coverings and coatings:
  • Rubber
  • Teflon
  • Hard-Coat anodize (aluminum)
  • Colored anodize (aluminum)
  • Black Oxide (steel)
  • Nickel
  • Chrome
  • Polished Chrome

Machined face options:
  • Grooves
  • Scrolls
  • Patterns
  • Knurls
  • Crowns
  • Concave (reverse crowns)

Material
Aluminum (ALU)
Steel (STL)
Roll Diameter
2
2.5
3
3.5
4
4.5
5
6
8
2.5
3
3.5
4
5
6
Shaft Diameter
.75
1
1
1.5
1.5
1.5
1.5
1.5
2
1
1
1.25
1.5
2
2
Wall Thickness
.25
.25
.5
.5
.5
.5
.5
.5
.5
.25
.187
.187
.25
.312
.375

All Dimensions in Inches

Click Here to Request Additional Information

Click Here to Download literature in PDF format

Click filename to view Specification Sheets
Filename  Description

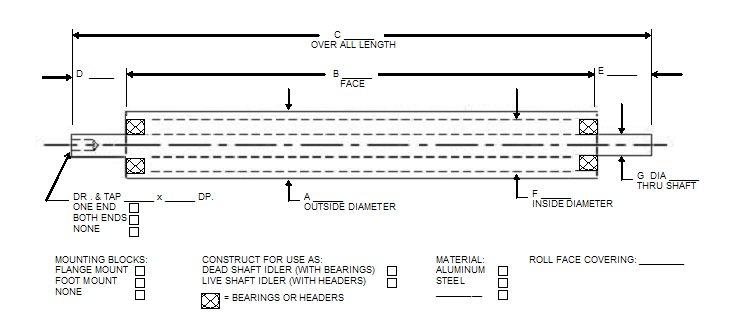

18503-68Idler Roll
